KD400GL CNC Wire Cut EDM Machine X×Y=320×400mm

KD400GL CNC Wire Cut EDM Machine X×Y=320×400mm


CNC wire cut EDM machine KD400GL has Kingred's own designed mechanical structure and lasted developed PLC-controlled system running at the latest Windows platform. Heavy-duty “C” structure and “T” shape machine bed with good rigidity to make sure accuracy of cutting, long-term accuracy keeping and stability. The latest KCUT wire cut EDM control system with PLC control, more powerful and have high expansibility and maintainability.


Main Dimensions of KD400GL CNC Wire Cut EDM Machine

X×Y×Z travel: 320×400×300mm;

Working table dimension: 435×650mm;

Max cut taper: ±12°/80mm;

Weight of the machine: 2600kg;

Load of the table: 400kg;

Wire drum type: moving.


KD400GL CNC Wire Cut EDM Machine Specifications


Name

KD400GL

X×Y×Z travel

320×400×300mm

Working table dimension

435×650mm

Max cut angle/thickness

±12°/80mm

Max load of the working table

400kg

Surface finish

Ra≤0.8-2.5μm(multiple and single paths cutting)

Max cutting speed

≥200mm2/min

Cut accuracy

≤±0.006mm, straight cutting

≤±0.015mm, angle cutting

Min drive unit

0.001mm

The diameter of the electrode wire

Φ0.12-Φ0.20mm

Weight of machine

2600kg

Dimension of machine

1650×1400×2100mm

Max cutting current

≥7A

Power supply

3 phase 380V/50Hz

High-frequency width (continuously adjustable)

1-99μs

Rated power

≤3KVA

Working tank

Capacity of tank

60L

Filtration

Changeable filter(0.005mm)

Dimension of tank

670×460×610mm

Weight of tank

60kg

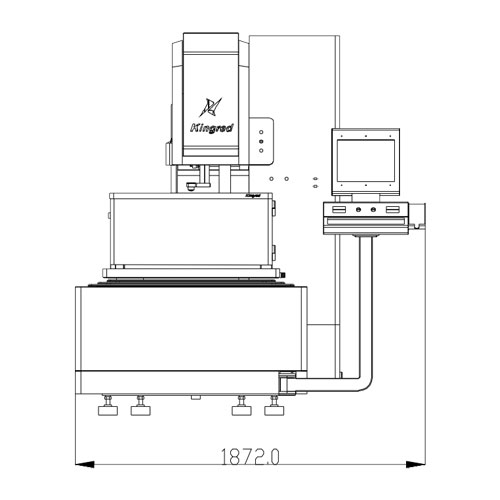

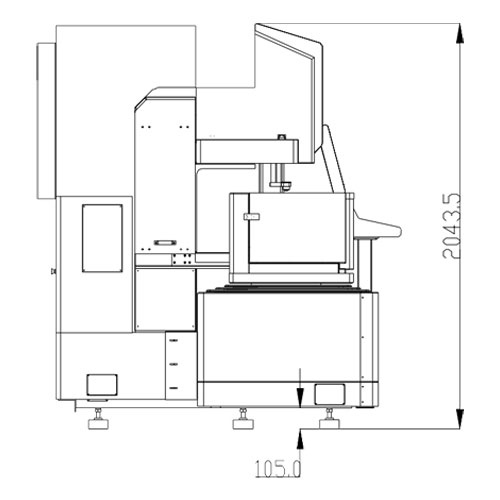

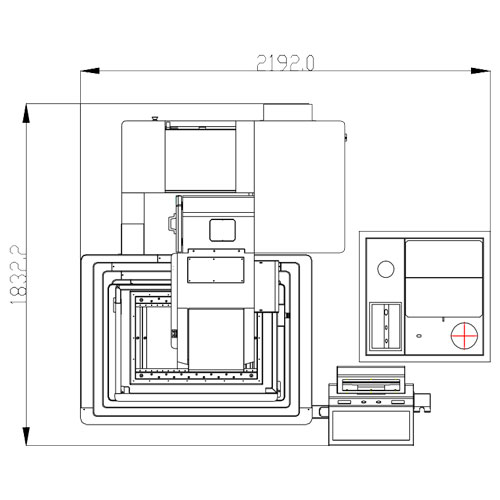

Outline Drawing


KD400GL CNC Wire Cut EDM Machine X×Y=320×400mm Layout
KD400GL CNC Wire Cut EDM Machine X×Y=320×400mm Layout
KD400GL CNC Wire Cut EDM Machine X×Y=320×400mm Layout
