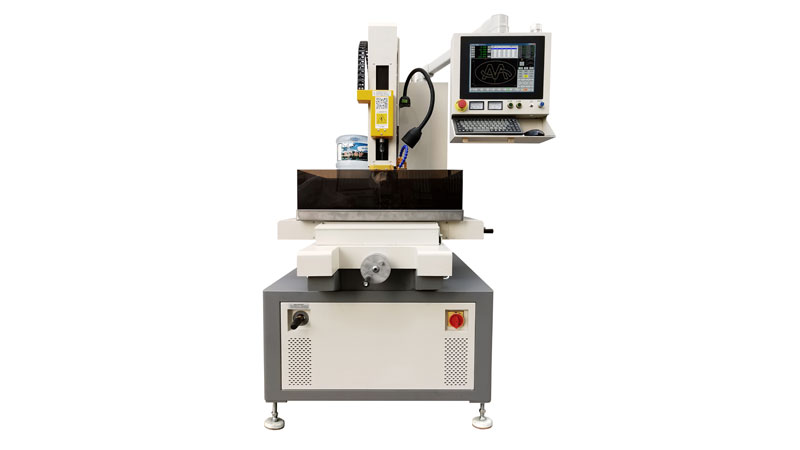

CNC EDM Hole Drilling Machine for Sale

CNC EDM drill, also known as CNC EDM small hole drilling machine, basically, there are three axis control(X, Y, Z), 4-axis control(X, Y, Z and W), 5-axis control(X, Y, Z, W and C), 6-axis control, (Y, Z, W, B, C) and even more. On the CNC EDM drill machine, Z axis spindle servo stroke: W axis is the stroke of machine head; C axis rotation in horizontal direction; B is swing in vertical direction. Equipped with automatic electrode or guide changer, CNC EDM drilling machine can do automatic machining.

CNC EDM Small Hole Drilling Machine Highlights


  • EDM small hole drilling machine can drill deep hole with diameters 0.1mm ~ 3mm for C type, 0.2mm ~ 3mm for B type, 0.3mm ~ 3mm for A type

  • The speed of the drilling hole is 30mm~60mm depth per minute (it is different for different materials), it is a kind of fast hole drilling EDM CNC tech.

  • EDM high speed small hole drilling machine can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth, etc.

  • EDM fast drilling machine can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminum, and hard alloy, etc.

  • EDM small hole drilling machine can easily erode the drill and screw tap etc. which is broken in the workpiece and not destroy the screw thread of the holes.

  • The working water can be normal water or saponification fluid and no pollution is brought.

  • The operation of the EDM drilling machine for sale is easy and convenient.

  • X, Y, Z three axes digital display with scale.

  • X, Y, Z three axes control.

Feel free if you want to know about EDM drilling machine price.


CNC EDM Small Hole Drilling Machine Packing List


No.

Item name

Specification

Quantify

1

Inner hexagon spanner

M3 M4 M5 M6 M8

1 piece each

2

Double-head screwdriver


1 piece

3

Shear for electrode


1 piece

4

Guide

Ф0.5×12×42mm

1 piece

5

Guide

Φ1.0×12×42mm

1 piece

6

Electrode

Φ0.5×500mm

100 pieces

7

Electrode

Φ1.0×500mm

100 pieces

8

Electrode seal

 Ф0-1.0mm

20 pieces

9

Chuck

4H

1 set

10

Balance bar mount


1 set

11

Tap connector


1 piece

12

Foot block

M16

4 pieces

13

Water tank


1 piece

14

Water barrel


1 piece

15

Water cover


1 set

16

Manual


1 set

17

Packing list


1 set

18

Recycling tank(optional)

110L

1 set

19

Flushing seat(optional)


1 set

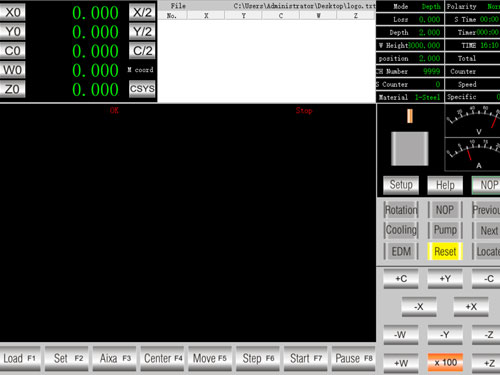

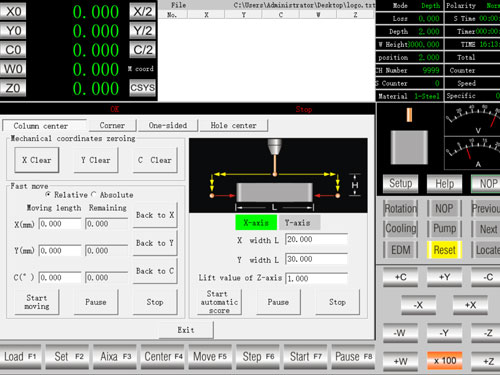

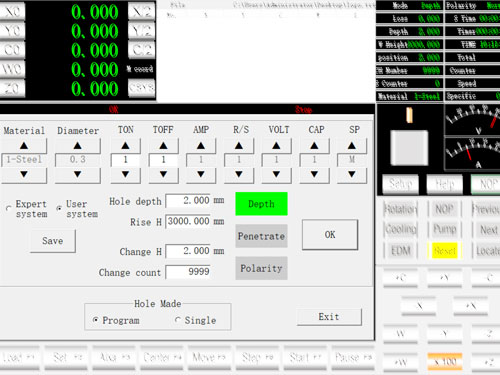

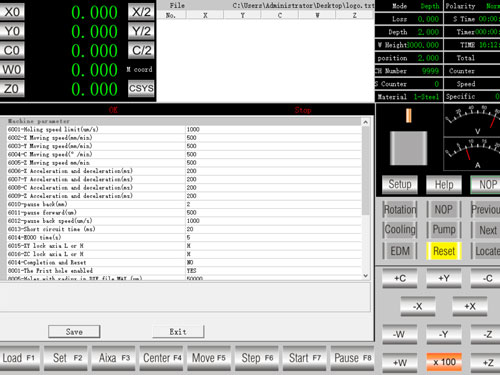

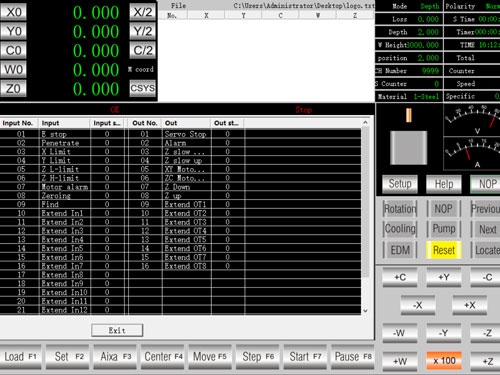

Function Pic CNC EDM Hole Drilling Machine for Sale



Consumable Parts CNC EDM Hole Drilling Machine for Sale
