KD400ZL-A CNC EDM Wire Cut Machine X×Y=320×400mm

KD400ZL-A CNC EDM Wire Cut Machine X×Y=320×400mm


High precision CNC wire cut EDM machine KD400ZL has a unique mechanical design and lasted Kingred's PLC controlled system. “C” structure, “T” shape machine bed to make sure high rigidity for excellent performance accuracy keeping and stability. Fixed wire drum with PLC servo-controlled wire tension to improve surface finish and accuracy of cut jobs. Latest KCUT wire cut EDM control system with PLC control. X, Y, U, V, Z, and wire drum are all controlled by an AC servo motor.


Main Dimensions of KD400ZL-A CNC EDM Wire Cut Machine

X×Y×Z travel: 320×400×300mm;

Working table dimension: 435×650mm;

Max cut taper: ±12°/80mm

Weight of the machine: 2600kg

Load of the table: 400kg

Wire drum type: fixed


KD400ZL-A CNC EDM Wire Cut Machine Specifications


Name

KD400ZL

X×Y×Z travel

320×400×300mm

Working table dimension

435×650mm

Max cut angle/thickness

±12°/80mm

Max load of the working table

400kg

Surface finish

Ra≤0.8-2.5μm(multiple and single paths cutting)

Max cutting speed

≥260mm2/min

Cut accuracy

≤±0.006mm, straight cutting

≤±0.015mm, angle cutting

Min drive unit

0.001mm

The diameter of the electrode wire

Φ0.10-Φ0.25mm

Weight of machine

2600kg

Dimension of machine

1610×1400×2000mm

Max cutting current

≥7A

Power supply

3 phase 380V/50Hz

High-frequency width (continuously adjustable)

1-99μs

Rated power

≤3KVA

Working tank

Capacity of tank

60L

Filtration

Changeable filter(0.005mm)

Dimension of tank

670×460×610mm

Weight of tank

60kg

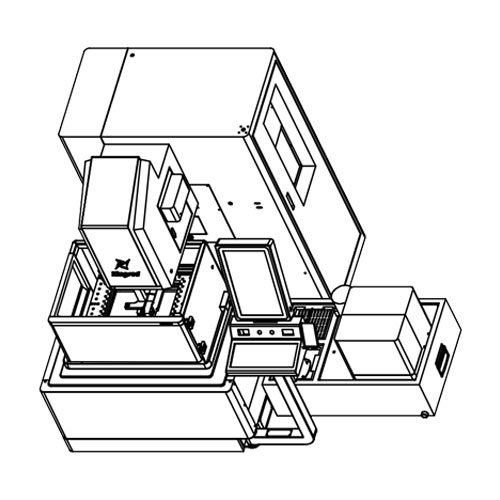

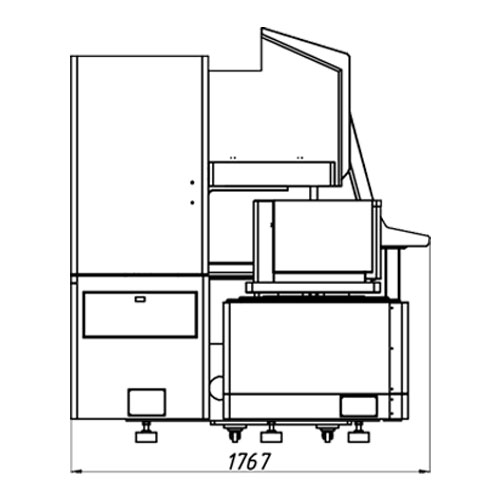

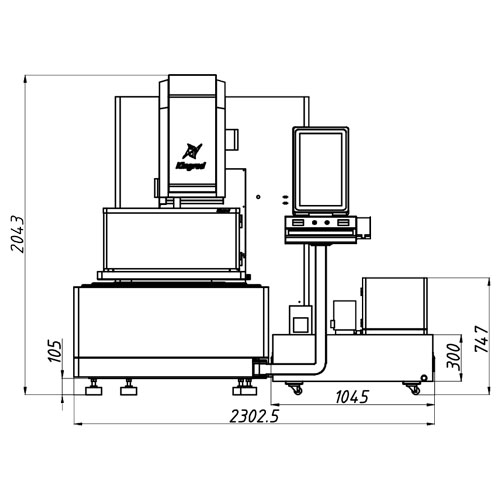

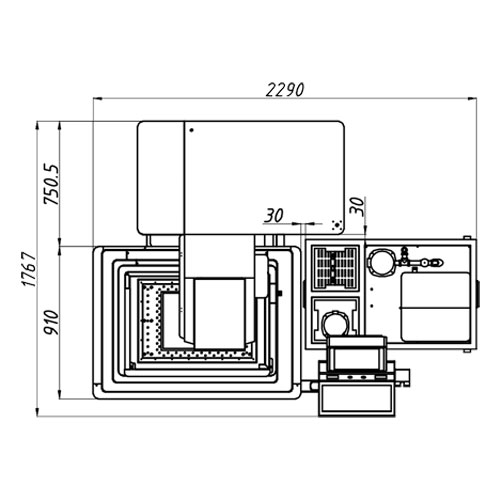

Outline Drawing


KD400ZL-A CNC EDM Wire Cut Machine X×Y=320×400mm Layout
KD400ZL-A CNC EDM Wire Cut Machine X×Y=320×400mm Layout
KD400ZL-A CNC EDM Wire Cut Machine X×Y=320×400mm Layout
KD400ZL-A CNC EDM Wire Cut Machine X×Y=320×400mm Layout
