KD500ZL-A CNC EDM Wire Cut Machine X×Y=400×500mm

KD500ZL-A CNC EDM Wire Cut Machine X×Y=400×500mm

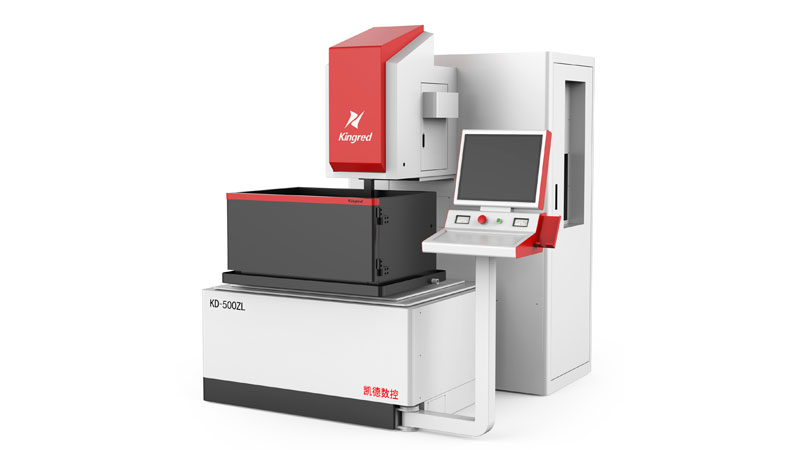

High precision CNC wire cut EDM machine KD500ZL has a unique mechanical design and lasted Kingred's PLC controlled system. “C” structure, “T” shape machine bed to make sure high rigidity for excellent performance accuracy keeping and stability. Fixed wire drum with PLC servo-controlled wire tension to improve surface finish and accuracy of cut jobs. Latest KCUT wire cut EDM control system with PLC control. X, Y, U, V, Z, and wire drum are all controlled by an AC servo motor.


Main Dimensions of KD500ZL-A CNC EDM Wire Cut Machine

X×Y×Z travel: 400×500×300mm;

Working table dimension: 520×800mm;

Max cut taper: ±12°/80mm;

Weight of the machine: 3000kg;

Load of the table: 600kg;

Wire drum type: fixed


KD500ZL-A CNC EDM Wire Cut Machine Specifications


Name

KD500ZL

X×Y×Z travel

400×500×300mm

Working table dimension

520×800mm

Max cut angle/thickness

±12°/80mm

Max load of the working table

600kg

Surface finish

Ra≤0.8-2.5μm(multiple and single paths cutting)

Max cutting speed

≥260mm2/min

Cut accuracy

≤±0.006mm, straight cutting

≤±0.015mm, angle cutting

Min drive unit

0.001mm

The diameter of the electrode wire

Φ0.12-Φ0.25mm

Weight of machine

3000kg

Dimension of machine

2100×2000×2000mm

Max cutting current

≥7A

Power supply

3 phase 380V/50Hz

High-frequency width (continuously adjustable)

1-99μs

Rated power

≤3KVA

Working tank

Capacity of tank

60L

Filtration

Changeable filter(0.005mm)

Dimension of tank

670×460×610mm

Weight of tank

60kg

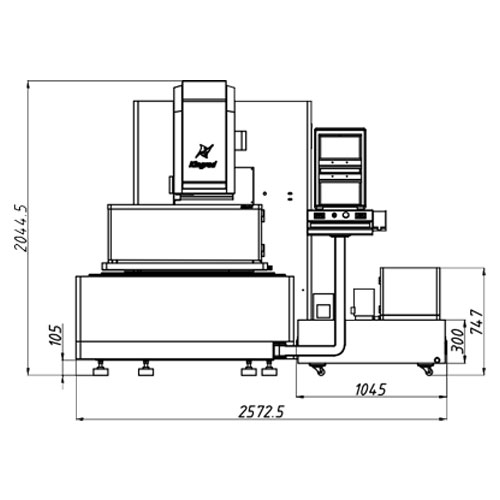

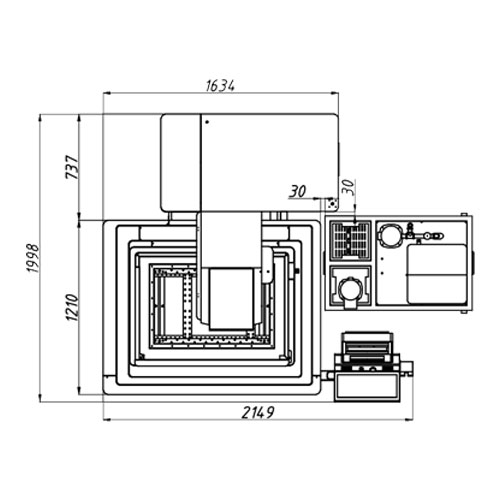

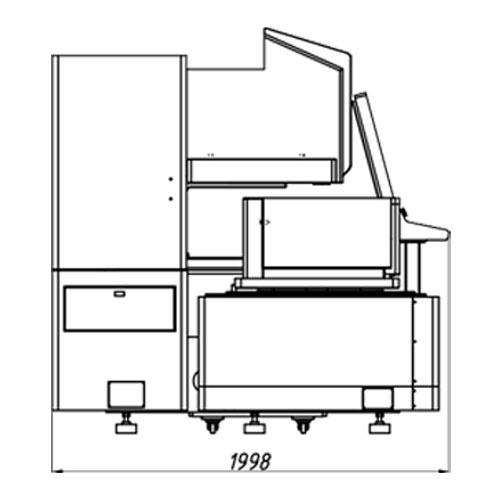

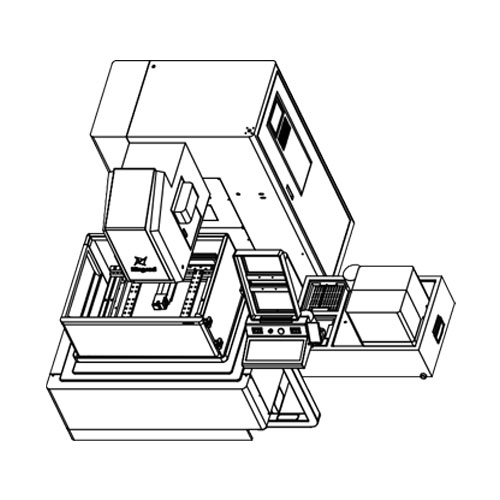

Outline Drawing


KD500ZL-A CNC EDM Wire Cut Machine X×Y=400×500mm Layout
KD500ZL-A CNC EDM Wire Cut Machine X×Y=400×500mm Layout
KD500ZL-A CNC EDM Wire Cut Machine X×Y=400×500mm Layout
KD500ZL-A CNC EDM Wire Cut Machine X×Y=400×500mm Layout
