- Precision & Finish: Cylindricity ≤0.008mm at 100mm thickness; best Ra0.6 after 1 rough and 3 trim cuts.
- For Cutting workpeice with height: 40–100 mm.
Cutting Speed (6 A):
- Single-cut: 10,000 mm²/h
- One-cut, one-trim: 6,500 mm²/h
- One-cut, two-trims: 5,500 mm²/h
- Control System: Windows-based intelligent system with a complete cutting parameters database (easy to learn with 2 hours of beginner training).
- Components & Mechanics: Imported Taiwan linear guideway and Delta AC servo motors; UV axes with precision linear guideways and ball screws; standard with ±15° taper cutting system.
- Operation: Wire-loading damper to prevent manual threading and wire overlap.
- Design & Power: "C" structure column and high rigidity machine body with abundant reinforcing ribs to maintain long-term accuracy. Space-saving integrated electric cabinet with high-quality electronic components, delivering up to 10 A maximum machining current.

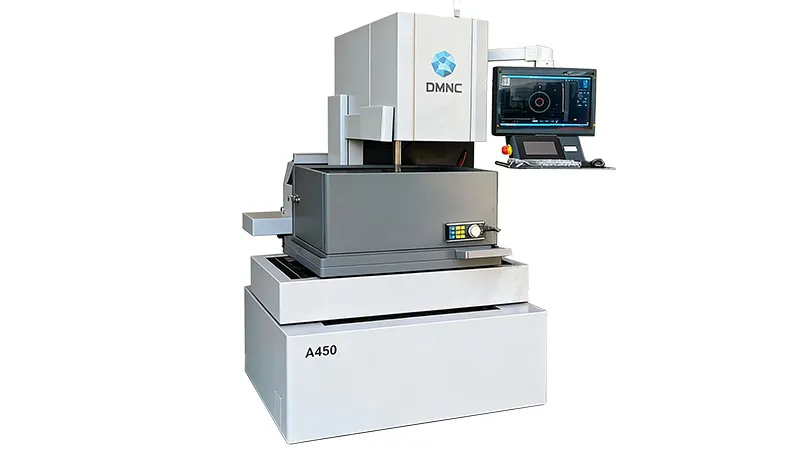

Main Dimensions of A450 CNC Wire Cut EDM Machine C Structure
X×Y×Z travel: 450×350×300mm
Working table dimension: 550×435mm
Weight of the machine: 1600kg
Load of the table: 300kg
Wire drum type: fixed
A450 CNC Wire Cut EDM Machine C Structure Specifications
Name | A450 |
X×Y×Z travel | 450×350×300mm |
Working table dimension | 550×435mm |
Max cut angle/thickness | ±15°/80mm |
Max load of the working table | 300kg |
Surface finish | Ra≤0.6um (1 rough +3 trim cuts H=20mm,SKD11) |
Max cutting speed | ≥200mm2/min |
Min drive unit | 0.001mm |
The diameter of the electrode wire | Φ0.12-Φ0.25mm |
Weight of machine | 1600kg |
Dimension of machine | 1600×1200×2000mm |
Max cutting current | 10A |
Power supply | 3 phase 380V/50Hz |
Rated power | ≤1.5KVA |
Working tank |
Capacity of tank | 100L |
Filtration | Ultrafine Filtration |
Dimension of tank | 1000x500x700mm |
Weight of tank | 80/60kg |
Outline Drawing
