P40 CNC EDM machine has three axis simultaneous control and 4th generation electrical discharging control system, best surface finish Ra≤0.12μm, Min. electrode wear ≤0.05%, standard equipped with 50A controller and Max machining efficiency ≥500mm3/min. Good performance, favorable price and suitable dimension make P40 the good choice for starting the business in the field.
Main Dimensions of General Purpose CNC EDM Machine P40
X×Y×Z travel: 400×300×320mm;
Working table dimension: 700×400mm;
Working tank on the table: 1200×680×440mm

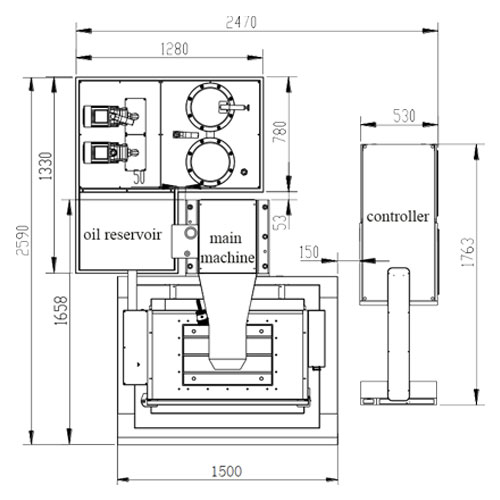

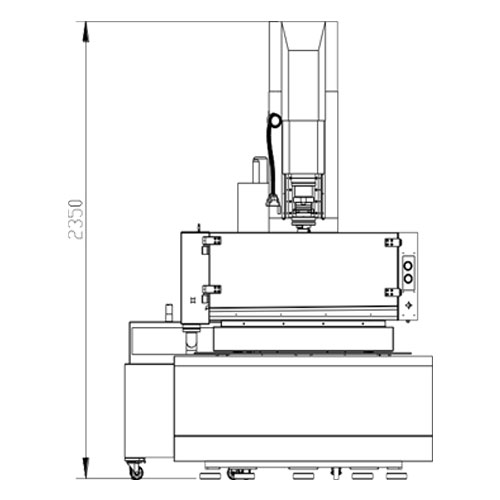

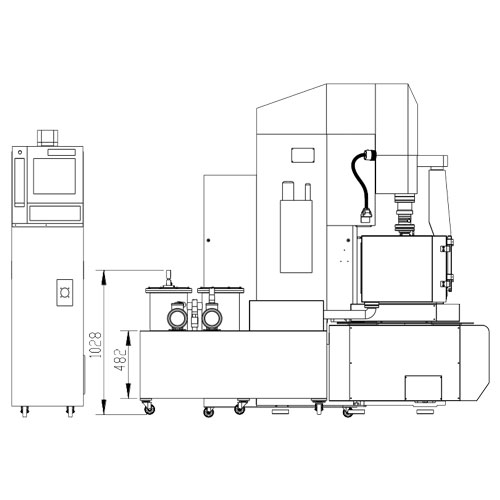

Outline Drawing
General Purpose CNC EDM Machine P40 Specifications
No. | Name | P40 |
1 | Working table dimension(L×W) | 700×400mm |
2 | X, Y, Z axis travel | 400×300×320mm |
3 | Working tank dimension(L×W×H） | 1200×680×440mm |
4 | Highest level of working liquid | 290mm |
5 | End of the spindle to the working table | 585mm |
6 | Capacity of the oil tank | 590L |
7 | Max weight of the electrode | 25kg |
8 | Max weight of the workpiece | 400kg |
9 | Positioning accuracy | <10µm |
10 | Repeat positioning accuracy | <5µm |
11 | Weight of machine | 2600kg |
12 | Dimension of machine | 2572×2300×2335mm |
13 | General input | 9kVA(50A) |
14 | Input power | 3 Phase 220/60Hz |
15 | CNC power generator | A2-50 |
16 | Max working current | 50A |
17 | Best surface finish | Ra≤0.12µm |
18 | Min. wear of the electrode | ≤0.1% |
19 | Max machining efficiency | ≥500mm3/min |
20 | Interpolation methods | Straight line, arc, helix |
21 | Accuracy compensation options | Step pitch compensation of each axis, gap compensation |
22 | Min. drive unit | 1µm |
23 | The outer dimension of the controller | 1250×550×1800mm |
24 | Display | 15-inch touch screen |
25 | Remote control | different gradesMFR0-3 |
