KD700ZL-A CNC EDM Wire Cut Machine X×Y=550×700mm

KD700ZL-A CNC EDM Wire Cut Machine X×Y=550×700mm


High precision CNC wire cut EDM machine KD700ZL has a unique mechanical design and lasted Kingred’s PLC controlled system. “C” structure, “T” shape machine bed to make sure high rigidity for excellent performance accuracy keeping and stability. Fixed wire drum with PLC servo-controlled wire tension to improve surface finish and accuracy of cut jobs. Latest KCUT wire cut EDM control system with PLC control. X, Y, U, V, Z, and wire drum are all controlled by an AC servo motor.


Main Dimensions of KD700ZL-A CNC EDM Wire Cut Machine

X×Y×Z travel: 550×700×300mm;

Working table dimension:710×950mm;

Max cut taper: ±12°/80mm;

Weight of the machine: 3600kg;

Load of the table: 700kg;

Wire drum type: fixed


KD700ZL-A CNC EDM Wire Cut Machine Specifications


Name

KD700ZL

X×Y×Z travel

550×700×300mm

Working table dimension

710×950mm

Max cut angle/thickness

±12°/80mm

Max load of the working table

700kg

Surface finish

Ra≤0.8-2.5μm(multiple and single paths cutting)

Max cutting speed

≥260mm2/min

Cut accuracy

≤±0.006mm, straight cutting

≤±0.015mm, angle cutting

Min drive unit

0.001mm

The diameter of the electrode wire

Φ0.12-Φ0.25mm

Weight of machine

3600kg

Dimension of machine

2300×2200×2100mm

Max cutting current

≥7A

Power supply

3 phase 380V/50Hz

High-frequency width (continuously adjustable)

1-99μs

Rated power

≤3KVA

Working tank

Capacity of tank

60L

Filtration

Changeable filter(0.005mm)

Dimension of tank

670×460×610mm

Weight of tank

60kg

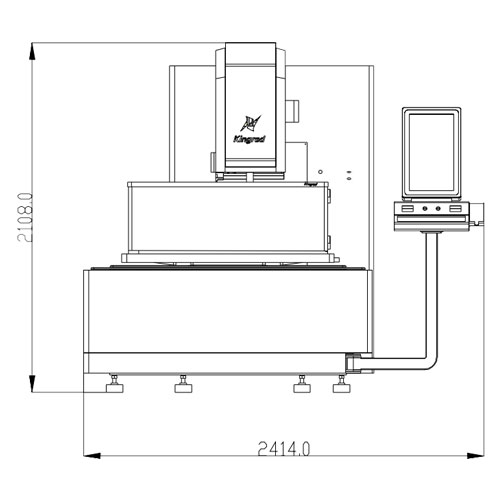

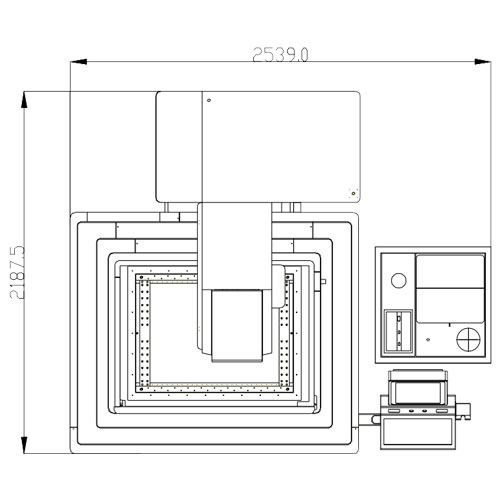

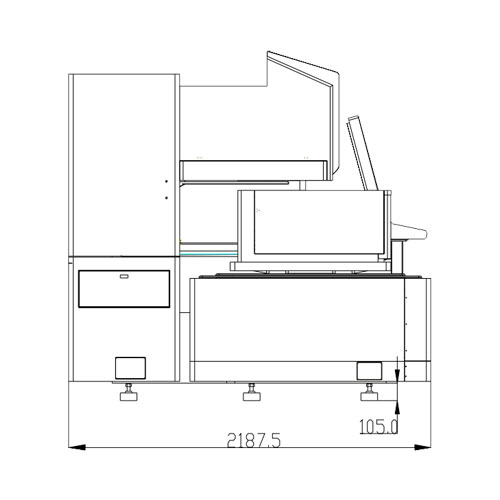

Outline Drawing


KD700ZL-A CNC EDM Wire Cut Machine X×Y=550×700mm Layout
KD700ZL-A CNC EDM Wire Cut Machine X×Y=550×700mm Layout
KD700ZL-A CNC EDM Wire Cut Machine X×Y=550×700mm Layout
