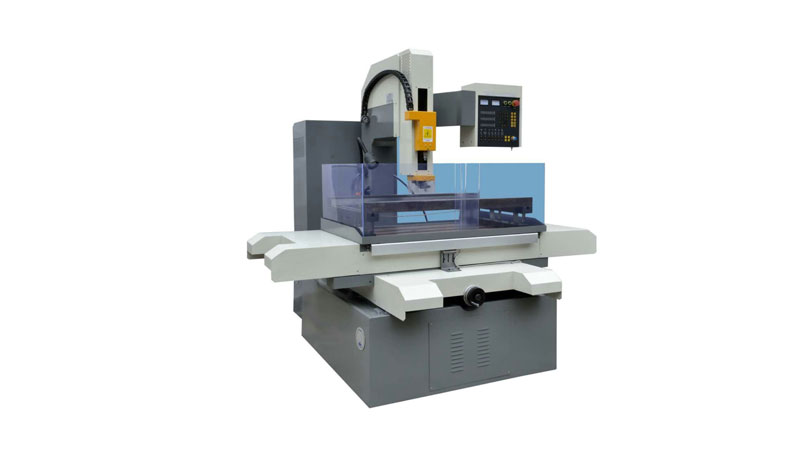

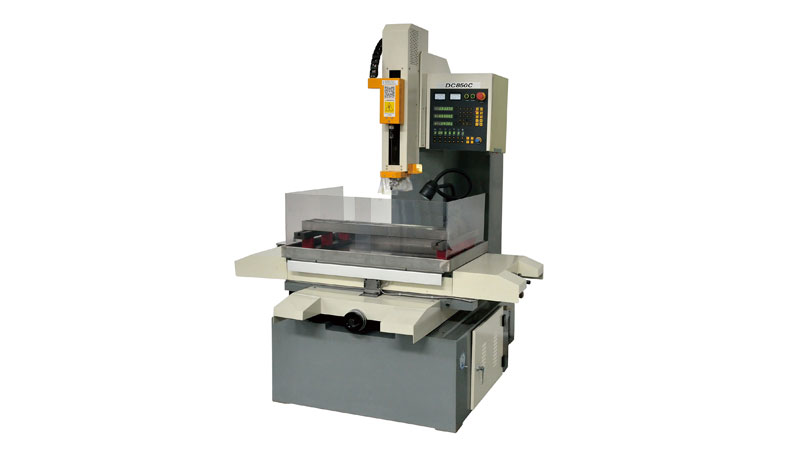

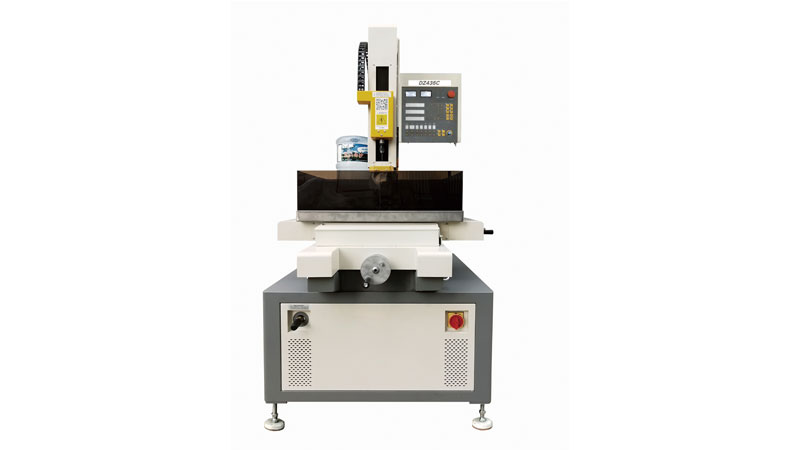

Manual EDM Small Hole Drilling Machine for Sale

Manual small hole EDM has X and Y axis manual control, use handwheel to move to the location of drilling position according to a digital readout of linear scale. Usually, it's ideal to process holes with small diameter but big depth, especially material that can’t be machined by the drilling machine.

Manual Small Hole EDM Drilling Machine Highlights


  • Can drill a deep hole with diameters 0.3mm ~ 3mm (the depth-diameter ratio is 300:1).

  • The speed of the drilling hole is 30mm~60mm depth per minute (it is different for different materials).

  • Can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth, etc.

  • Can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminum and hard alloy, etc. This is a useful funtion of small hole drilling machine.

  • Can easily erode the drill and screw tap etc. which is broken in the workpiece and not destroy the screw thread of the holes.

  • The working water can be normal water or saponification fluid and no pollution is brought.

  • The operation of the EDM hole drilling machine for sale is easy and convenient

  • X, Y, Z three axes digital display with scale.


Manual Small Hole EDM Drilling Machine Packing List


No.

Item name

Specification

Quantify

1

Inner hexagon spanner

M3 M4 M5 M6 M8

1 piece each

2

Double-head screwdriver


1 piece

3

Shear for electrode


1 piece

4

Guide

Φ0.5mm

1 piece

5

Guide

Φ1.0mm

1 piece

6

Electrode

Φ0.5mm

100 pieces

7

Electrode

Φ1.0mm

100 pieces

8

Electrode seal


10 pieces

9

Chuck

4H

1 set

10

Balance bar mount


1 set

11

Tap connector


1 piece

12

Foot block

M16

4 pieces

13

Water tank


1 piece

14

Water barrel


1 piece

15

Water cover


1 set

16

Manual


1 set

17

Packing list


1 set

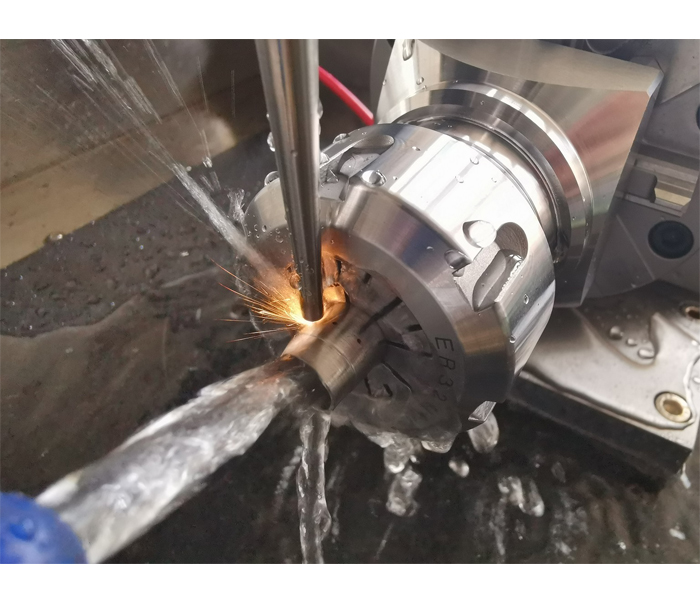

Small Hole EDM Drilling Applications

There are three types of typical applications of electric discharge machining (EDM), wire cut EDM, EDM penetration(sink EDM) and small hole drilling EDM, they were developed for different purposes. Sometimes, when a tiny and deep hole needs to be done on a super hard material, diameter 0.8mm and depth 120mm, it becomes impossible to process by conventional drilling machine due to hardness of material and drill tool is easy to break. Thanks to advantage of EDM technology, small hole EDM can process all kinds of hard material without actual touching the workpiece, besides, it’s fast and cost-effective. Usually, the diameter of small hole EDM to process ranges from Φ0.1-3.0mm, for some special applications, diameter of the hole could be less than 0.06mm, which is impossible to achieve with any other machining methods.

Some typical applications of small hole drilling EDM are listed below.

1. Start hole for wire cut EDM, when it needs to cut a male die, it must cut from inside of the workpiece, so it needs to make a start-hole with small diameter for wire cut EDM to thread wire through, small hole drilling EDM is the most perfect partner for wire cut EDM.

2. As small hole drilling EDM can process super hard material like titanium alloy for aerospace, energy industry, the most widely application is to make small air holes on the blades of turbine. With 5-axis or 6-axis control, CNC small hole EDM drilling machine can process small holes at different positions with different titling angles on the blades of turbine.

3. Other applications: chemical fiber spinneret, spinneret hole of spinneret plate, filter plate, group hole of sieve plate, heat dissipation hole of cylinder block, oil circuit and air circuit hole of hydraulic and pneumatic valve body, flushing hole of cutting tools, and etc.

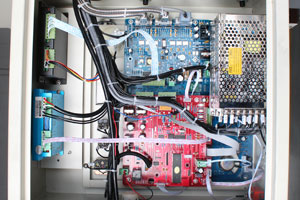

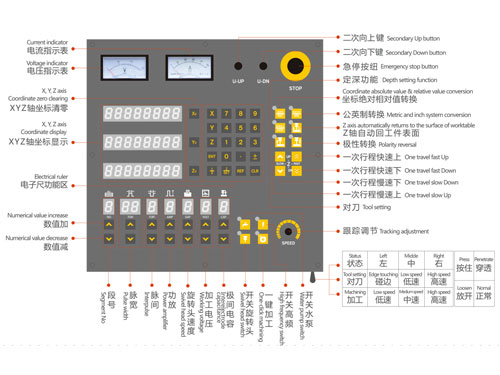

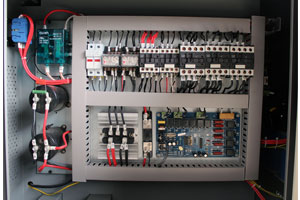

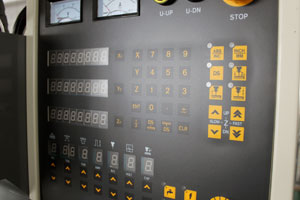

Function Pic Manual EDM Small Hole Drilling Machine for Sale



Consumable Parts Manual EDM Small Hole Drilling Machine for Sale
