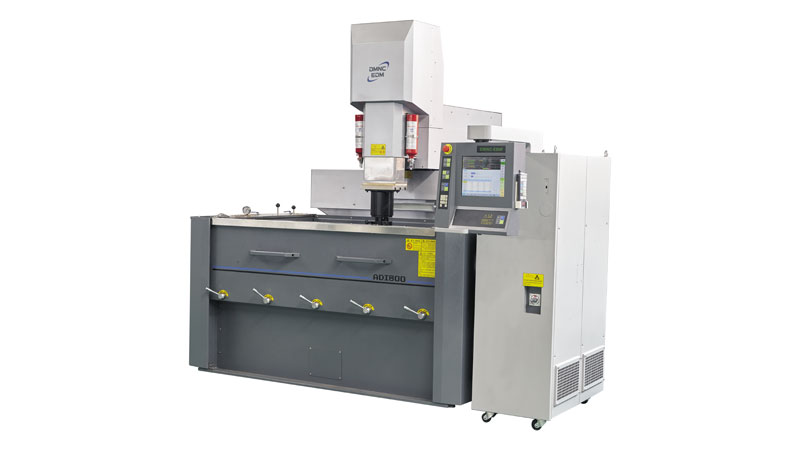

CNC spark erosion machine ADI800-Ⅱ has a new 6th generation CNC EDM control system, introduced by Beijing DMNC-EDM. The working table of EDM machine ADI800-Ⅱ is fixed, X and Y axis are moving on the column, there is no influence upon X and Y axis when the weight of the workpiece changes, so it can load heavy parts. The performance of CNC EDM ADI800-Ⅱ is competitive to machines produced by top worldwide manufacturers.
Main Dimensions of ADI800-Ⅱ CNC EDM Machine
X×Y×Z travel: 800×500×400mm;
Working table dimension: 1100×600mm;
Working tank on table: 1800×1100×570mm
ADI800-Ⅱ CNC EDM Machine Specifications
No. | Name | ADI800-Ⅱ |
1 | Working table dimension(L×W) | 1100×600mm |
2 | X×Y×Z axis travel | 800×500×400mm |
3 | Working tank dimension(L×W×H） | 1800×1100×570mm |
4 | Highest level of working liquid | 400mm |
5 | End of the spindle to the working table | 900mm |
6 | Capacity of the oil tank | 1300L |
7 | Max weight of the electrode | 100kg |
8 | Max weight of the workpiece | 2500kg |
9 | Weight of machine | 5000kg |
10 | Dimension of machine | 2850×3320×2670mm |
11 | General input | 9kVA(50A) |
12 | Input power | 3 Phase 380/50Hz |
13 | CNC power generator | Windows 7 based |
14 | Max working current | 50A |
15 | Best surface finish | Ra≤0.2µm |
16 | Min. wear of the electrode | ≤0.1% |
17 | Max machining efficiency | ≥500mm3/min |
18 | Interpolation methods | Straight line, arc, helix |
19 | Accuracy compensation options | Step pitch compensation of each axis, gap compensation |
20 | Min. drive unit, Min command unit | 1µm |
21 | The outer dimension of the controller | 1250×550×1800mm |
22 | Display | 19-inch touch screen |
23 | Remote control | different gradesMFR0-3 |
ADI-Ⅱ Series CNC Die Sinking EDM Highlights
Best surface finish 0.1 μm with high positioning accuracy
HT250 cast-iron .T-shaped base after three tempering cycles and one-year natural aging; built-in reinforcing ribs prevent table overhang bending for steady-long-term accuracy
Equipped new CNC EDM control system with embedded Windows 7 OS and multi axis simultaneous motion function.
It has an expert system with a robust machining‑process database. It auto‑generates modules for different cavity types, selectable per workpiece material.
Special purpose machining circuits: dedicated circuit for cemented carbide, high speed graphite machining circuit, mirror finish machining circuit...
Orbit functions: free orbit, side orbit for deep bottom machining, quadrant orbit, orbit with designated axis lock, custom quadrant zone orbit, and Sphere orbital cutting.
Separated strong-/weak-current zones plus built-in air-conditioning for stable machining and longer electronic-part lifespan.Panasonic or Yaskawa motors, Omron relays, Omron / Molex (USA) / Phoenix Contact (Germany) connectors
Laser interferometer and roughness tester analysis for accuracy verification
Automotive、Aerospace and Defense、Medical、Electronics、Home Appliances、Cosmetics、Eyewear、Non-traditional Machining、Connectors and Plugs、Laptops、Packaging...

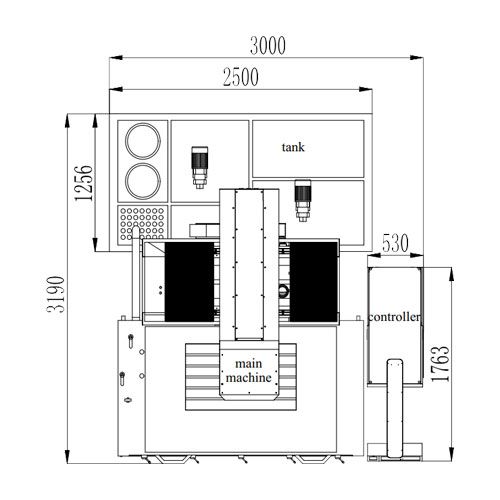

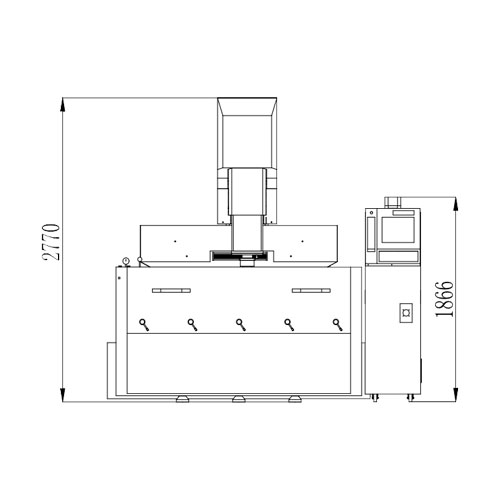

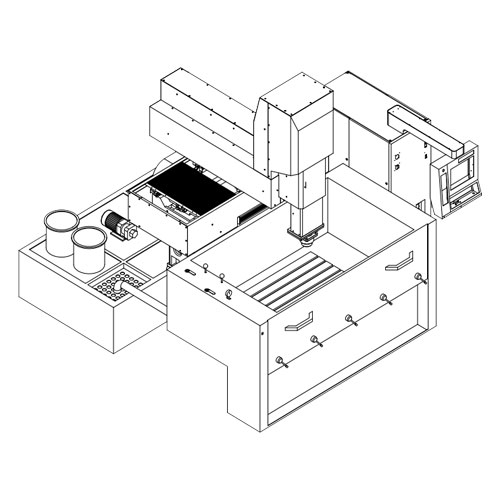

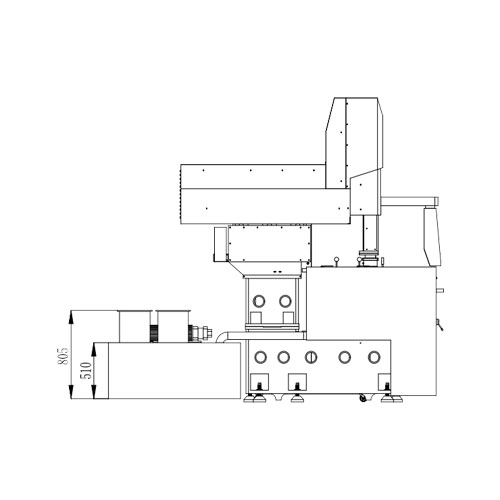

Outline Drawing
