ADI1400 CNC EDM Machine With Double Heads

ADI1400 CNC EDM Machine With Double Heads

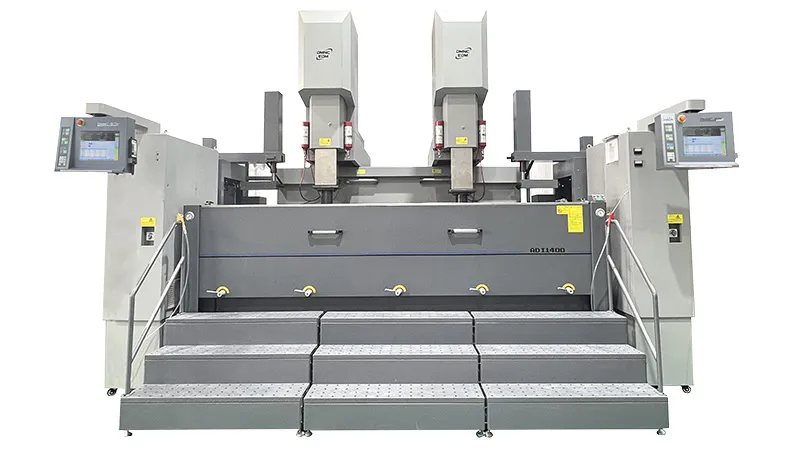

Double heads CNC die sinking EDM machine ADI1400 has two separated heads. The working table of EDM machine ADI1400 is fixed, X and Y axis are moving on the column, there is no influence upon X and Y axis when the weight of the workpiece changes, so it can load heavy parts. Two heads and two controllers can do spark discharging separately, so ADI1400 can process two molds at the same time, or two positions of large a mold.


Main Dimensions of ADI1400 CNC EDM Machine

X×Y×Z travel: 900×700×500mm(each head);

Working table dimension: 1600×900mm;

Working tank on the table: 2250×1300×700mm


ADI1400 CNC EDM Machine Specifications


No.

Name

ADI1400

1

Working table dimension(L×W)

1600×900mm

2

X×Y×Z axis travel

Each head 900×700×500mm

3

Working tank dimension(L×W×H)

2250×1300×700mm

4

Highest level of working liquid

500mm

5

End of the spindle to the working table

1100mm

6

Capacity of the oil tank

1800L

7

Max weight of the electrode

200kg

8

Max weight of the workpiece

4500kg

9

Positioning accuracy

X/Y/Z: 5µm/300mm

10

Repeat positioning accuracy

X/Y/Z: 3µm

11

Weight of machine

9000kg

12

Dimension of machine

4500×4050×3450mm

13

General input

9kVA(50A)/each head

14

Input power

3 Phase 380/50Hz

15

CNC power generator

Windows 7 based

16

Max working current

50A

17

Best surface finish

Ra≤0.2µm

18

Min. wear of the electrode

≤0.1%

19

Max machining efficiency

≥500mm3/min

20

Interpolation methods

Straight line, arc, helix

21

Accuracy compensation options

Step pitch compensation of each axis,

gap compensation

22

Min. drive unit, Min command unit

1µm

23

The outer dimension of the controller

1250×550×1800mm

24

Display

15-inch touch screen

25

Remote control

different gradesMFR0-3


Outline Drawing
