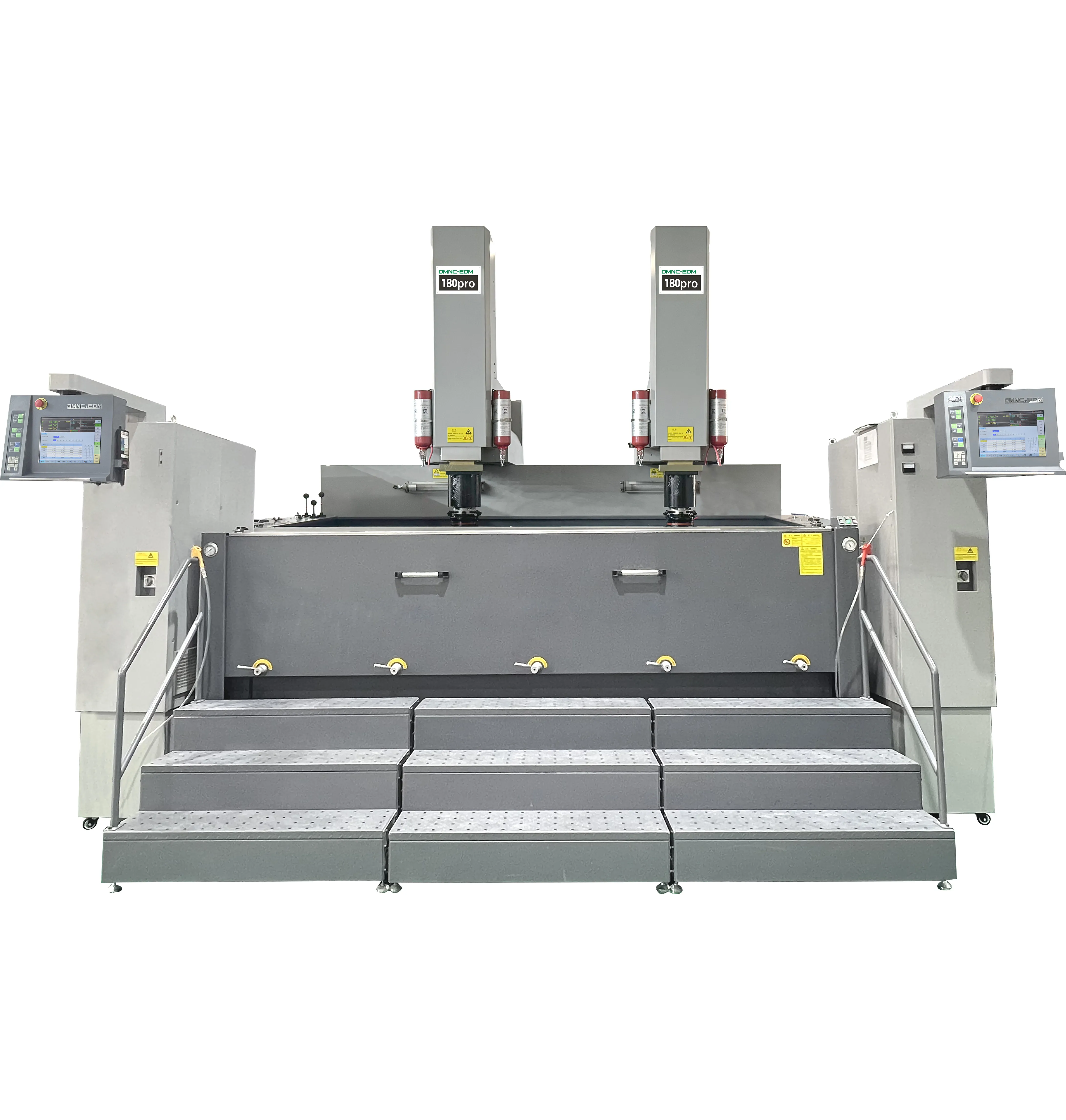

The 180pro is Dimeng’s top-tier ultra-large-stroke dual-head EDM flagship. Adopting dual independent full-power machining systems and self-developed high-output discharge technology, it supports synchronous or separate dual-channel processing. With an ultra-heavy rigid cast-iron structure, it delivers stable ultra-fine mirror finishing and doubles production efficiency. It is specially designed for super-large automotive molds, giant injection molds and high-volume precision batch machining.
Main Dimensions of A45 CNC Die Sinking EDM Machine
X×Y×Z travel: 800×500×400mm;
Working table dimension: 600×400mm;
Working tank on the table: 1090×630×445mm

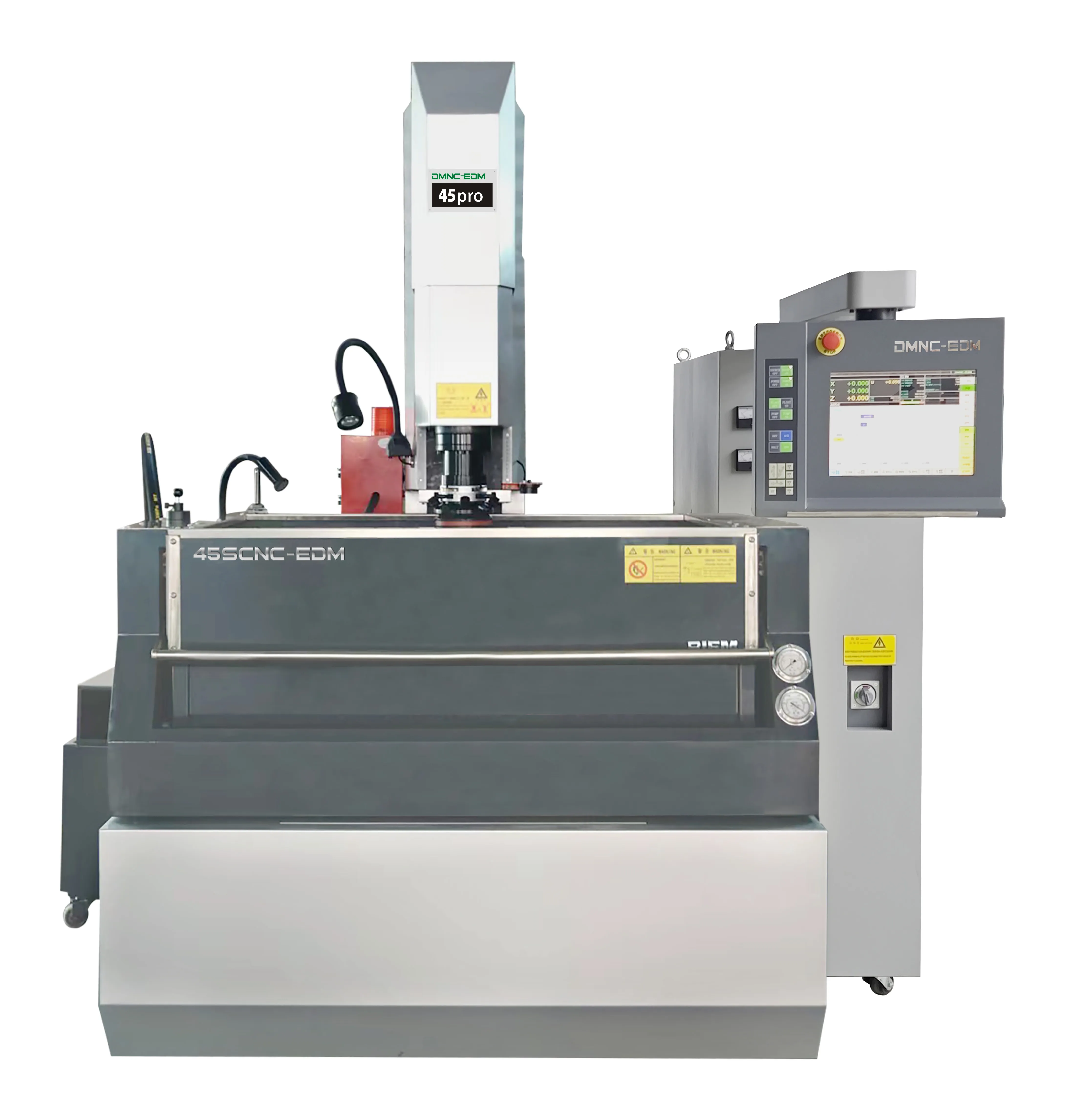

A45 CNC Die Sinking EDM Machine Specifications
No. | Name | A45 |
1 | Working table dimension(L×W) | 600×400mm |
2 | X, Y, Z axis travel | 452×300×272mm |
3 | Working tank dimension(L×W×H） | 1090×630×445mm |
4 | Highest level of working liquid | 290mm |
5 | End of the spindle to the working table | 600mm |
6 | Capacity of the oil tank | 600L |
7 | Max weight of the electrode | 25kg |
8 | Max weight of the workpiece | 400kg |
9 | Positioning accuracy | 6µm |
10 | Repeat positioning accuracy | 3.5µm |
11 | Weight of machine | 3100kg |
12 | Dimension of machine | 1500×1680×2350mm |
13 | General input | 9kVA(50A) |
14 | Input power | 3 Phase 220/60Hz |
15 | CNC power generator | A3-50 |
16 | Max working current | 50A |
17 | Best surface finish | Ra≤0.08µm |
18 | Min. wear of the electrode | ≤0.05% |
19 | Max machining efficiency | ≥500mm3/min |
20 | Interpolation methods | Straight line, arc, helix |
21 | Accuracy compensation options | Step pitch compensation of each axis, gap compensation |
22 | Min. drive unit | 1µm |
23 | The outer dimension of the controller | 1250×550×1800mm |
24 | Display | 15-inch touch screen |
25 | Remote control | different gradesMFR0-3 |
