CNC EDM sinker ADI450-Ⅱ adopts the latest sixth-generation EDM machine control system, developed recently by the Beijing Institute of Electro-machining. Thanks to high rigidity structure, high-performance spark erosion control system and strict quality control, ADI450-Ⅱ is a good choice for producing high precision molds and processing hard alloy and other tasks with strict reequipment of surface finish and accuracy, it is easy to get mirror surface finish on ADI450 with efficient speed. In fact, ADI450-Ⅱ with table travel 452×300 is the most widely used in the market, not small and not big. The performance of CNC EDM ADI450-Ⅱ is competitive to machines produced by top worldwide manufacturers, but the price is more attractive.
Main Dimensions of ADI450-Ⅱ CNC EDM Machine
X×Y×Z travel: 452×300×272mm;
Working table dimension: 600×400mm;
Working tank on the table: 1084×597×435mm
ADI-Ⅱ450 CNC EDM Machine Specifications
No. | Name | ADI450-Ⅱ |
1 | Working table dimension(L×W) | 600×400mm |
2 | X×Y×Z axis travel | 452×300×272mm |
3 | Working tank dimension(L×W×H） | 1084×597×435mm |
4 | Highest level of working liquid | 300mm |
5 | End of the spindle to the working table | 580mm |
6 | Capacity of the oil tank | 600L |
7 | Max weight of the electrode | 25kg |
8 | Max weight of the workpiece | 450kg |
9 | Weight of machine | 3100kg |
10 | Dimension of machine | 2024×2590×2355mm |
11 | General input | 9kVA(50A) |
12 | Input power | 3 Phase 380/50Hz |
13 | CNC power generator | Windows 7 based |
14 | Max working current | 50A |
15 | Best surface finish | Ra≤0.1µm |
16 | Min. wear of the electrode | ≤0.1% |
17 | Max machining efficiency | ≥500mm3/min |
18 | Interpolation methods | Straight line, arc, helix |
19 | Accuracy compensation options | Step pitch compensation of each axis, gap compensation |
20 | Min. drive unit, Min command unit | 1µm |
21 | The outer dimension of the controller | 1250×550×1800mm |
22 | Display | 19-inch touch screen |
23 | Remote control | different gradesMFR0-3 |
ADI-Ⅱ Series CNC Die Sinking EDM Highlights
Best surface finish 0.1 μm with high positioning accuracy
HT250 cast-iron .T-shaped base after three tempering cycles and one-year natural aging; built-in reinforcing ribs prevent table overhang bending for steady-long-term accuracy
Equipped new CNC EDM control system with embedded Windows 7 OS and multi axis simultaneous motion function.
It has an expert system with a robust machining‑process database. It auto‑generates modules for different cavity types, selectable per workpiece material.
Special purpose machining circuits: dedicated circuit for cemented carbide, high speed graphite machining circuit, mirror finish machining circuit...
Orbit functions: free orbit, side orbit for deep bottom machining, quadrant orbit, orbit with designated axis lock, custom quadrant zone orbit, and Sphere orbital cutting.
Separated strong-/weak-current zones plus built-in air-conditioning for stable machining and longer electronic-part lifespan.Panasonic or Yaskawa motors, Omron relays, Omron / Molex (USA) / Phoenix Contact (Germany) connectors
Laser interferometer and roughness tester analysis for accuracy verification
Automotive、Aerospace and Defense、Medical、Electronics、Home Appliances、Cosmetics、Eyewear、Non-traditional Machining、Connectors and Plugs、Laptops、Packaging...

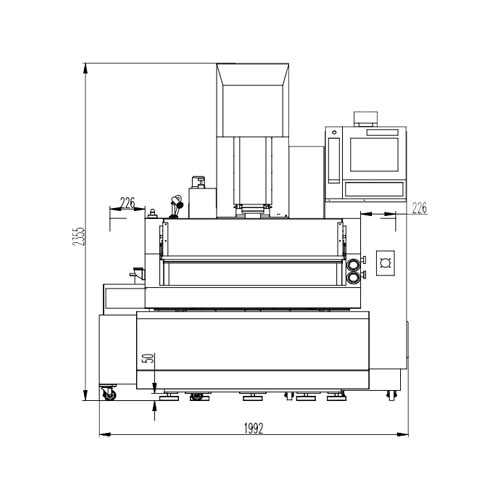

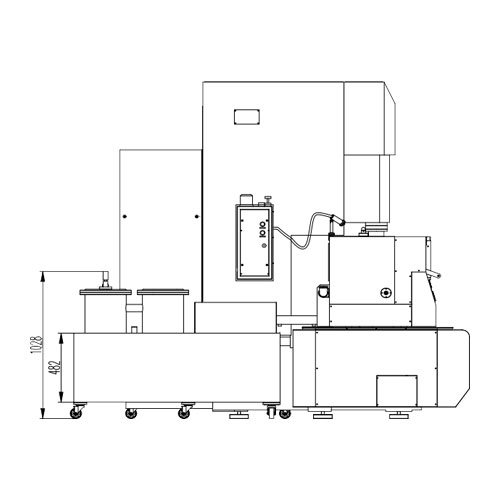

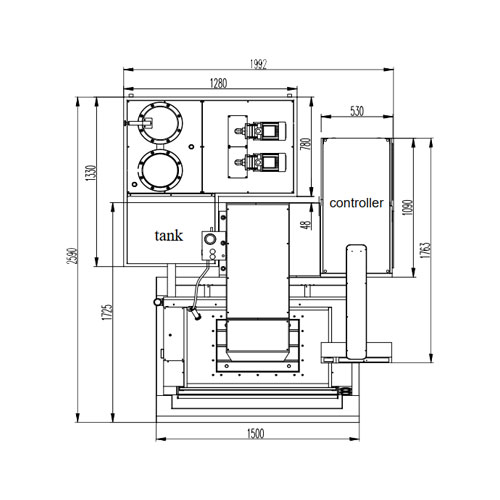

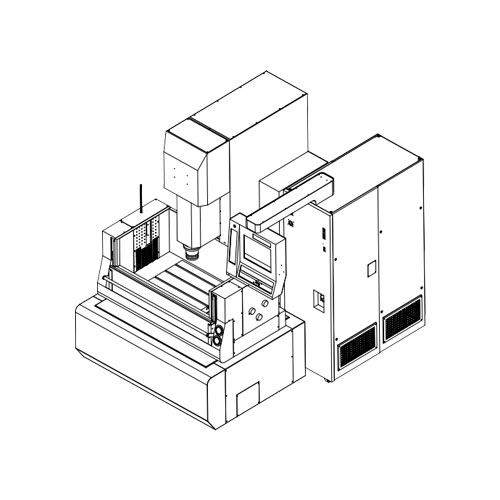

Outline Drawing
