ZNC540 Electric Discharge Machining

ZNC540 Electric Discharge Machining


ZNC die sinking EDM has X and Y axis manual control and Z axis program control, with handwheel of X and Y axis, it is fast and convenient to locate position for spark discharge machining. Due to affordable cost and good performance, ZNC EDM is widely used in producing various plastic injection molds, such as home applications, electronic connectors, powder metallurgy, automotive molds, and other industries.


Main Dimensions of ZNC540 Electric Discharge Machining

X×Y×Z travel:500×400×220mm;

Working table dimension:800×450mm;

Working tank on the table: 1160×690×500mm


ZNC540 Electric Discharge Machining Specifications


Items

unit

ZNC540

The oil load capacity of the table

mm

1160×690×500

Table size

mm

800×450

Travel of X/Y/Z

mm

500×400×220

2nd Z axis travel

mm

220

Distance from spindle end to the table

mm

220-690

Oil tank dimension

mm

110×1400×530

Max load of electrode weight

Kg

50

Load of table

Kg

1000

Dimension of machine

mm

2400×1450×2200

Net weight of the machine

Kg

1500



Outline Drawing

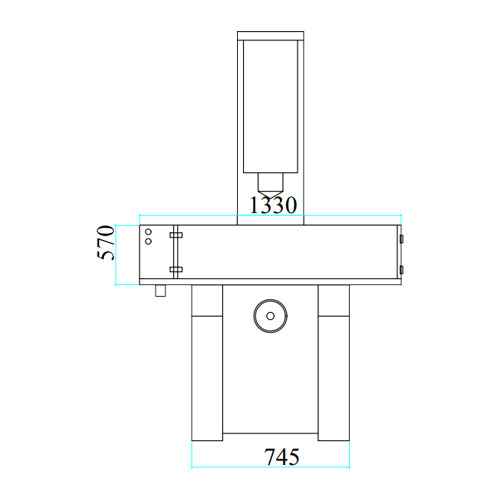

ZNC540 Electric Discharge Machining Layout

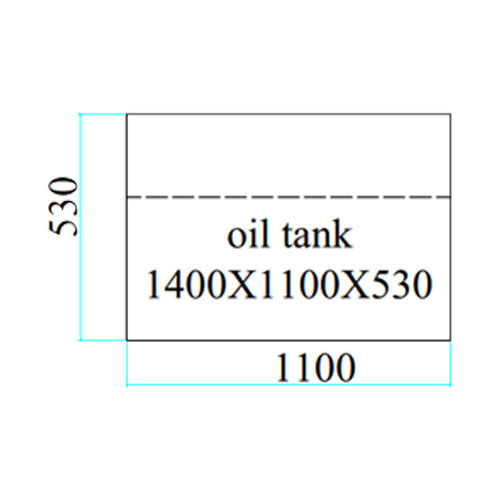

ZNC540 Electric Discharge Machining Layout

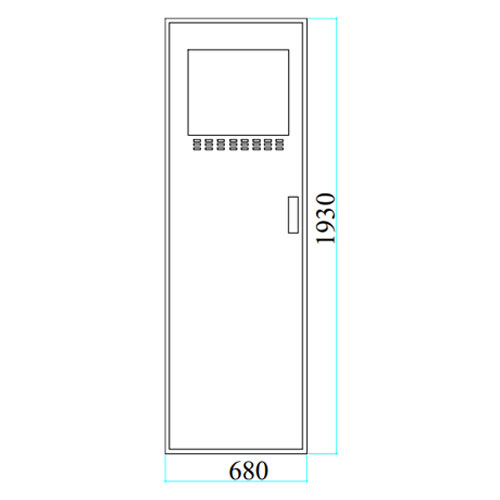

ZNC540 Electric Discharge Machining Layout
ZNC540 Electric Discharge Machining Layout
