ZNC450 Electrical Discharge Machining Machine

ZNC450 Electrical Discharge Machining Machine


ZNC die sinking EDM has X and Y axis manual control and Z axis program control, with handwheel of X and Y axis, it is fast and convenient to locate position for spark discharge machining. Due to affordable cost and good performance, ZNC EDM is widely used in producing various plastic injection molds, such as home applications, electronic connectors, powder metallurgy, automotive molds, and other industries.


Main Dimensions of ZNC450 Electrical Discharge Machining Machine

X×Y×Z travel: 450×350×210mm;

Working table dimension:700×400mm;

Working tank on the table: 1065×640×450mm


ZNC450 Electrical Discharge Machining Machine Specifications


Items

unit

ZNC450

The oil load capacity of the table

mm

1065×640×450

Table size

mm

700×400

Travel of X/Y/Z

mm

450×350×210

2nd Z axis travel

mm

235

Distance from spindle end to the table

mm

220-660

Oil tank dimension

mm

750×1150×530

Max load of electrode weight

Kg

50

Load of table

Kg

800

Dimension of machine

mm

2100×1300×2180

Net weight of the machine

Kg

1500

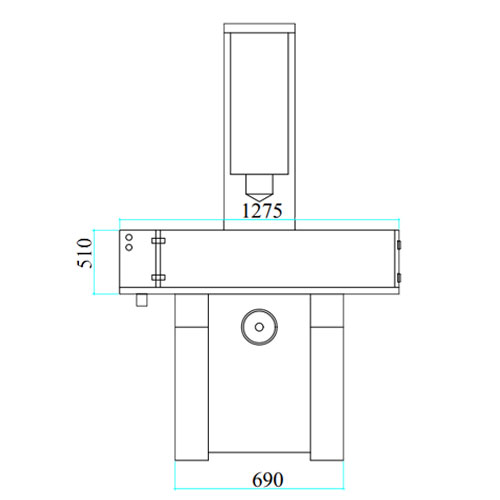

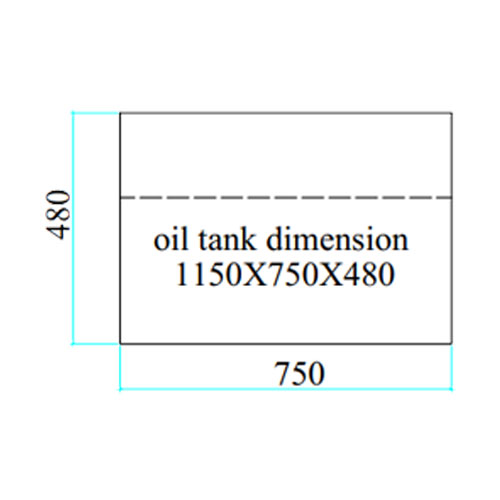

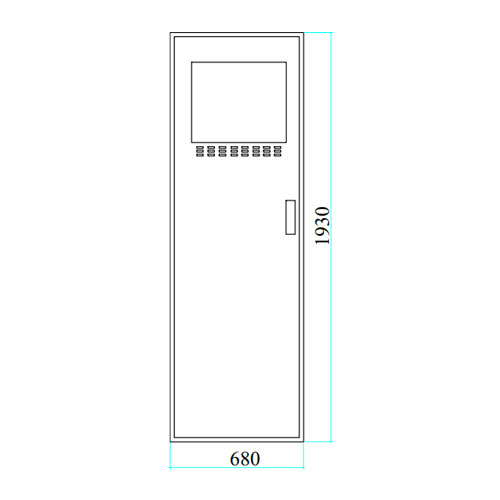

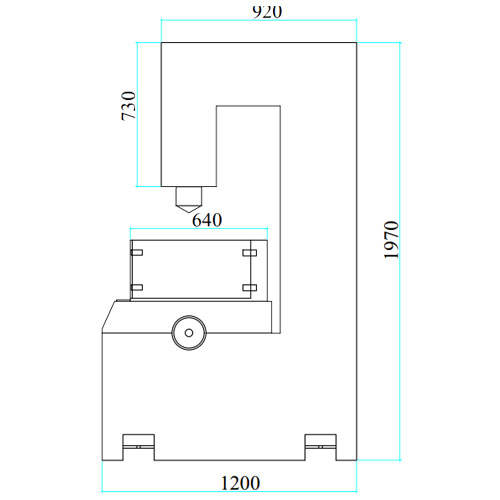

Outline Drawing


ZNC450 Electrical Discharge Machining Machine Layout
ZNC450 Electrical Discharge Machining Machine Layout
ZNC450 Electrical Discharge Machining Machine Layout
ZNC450 Electrical Discharge Machining Machine Layout
