ZNC430 ZNC Electrical Discharge Machine

ZNC430 ZNC Electrical Discharge Machine


ZNC430 ZNC Electrical Discharge Machine has X and Y axis manual control and Z axis program control, with handwheel of X and Y axis, it is fast and convenient to locate position for spark discharge machining. Due to affordable cost and good performance, this EDM die sinker machine is widely used in producing various plastic injection molds, such as home applications, electronic connectors, powder metallurgy, automotive molds, and other industries.


Main Dimensions of ZNC430 ZNC Electrical Discharge Machine

X×Y×Z travel: 400×300×200mm;

Working table dimension:700×360mm;

Working tank on the table: 1000×580×370mm


ZNC430 ZNC Electrical Discharge Machine Specifications


Items

unit

ZNC430

The oil load capacity of the table

mm

1000×580×370

Table size

mm

700×360

Travel of X/Y/Z

mm

400×300×200

2nd Z axis travel

mm

200

Distance from spindle end to the table

mm

250-610

Oil tank dimension

mm

500×1400×550

Max load of electrode weight

Kg

75

Load of table

Kg

800

Dimension of machine

mm

1700×1400×2070

Net weight of the machine

Kg

1200

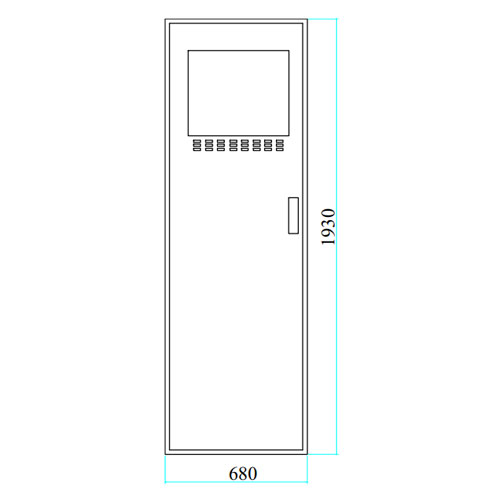

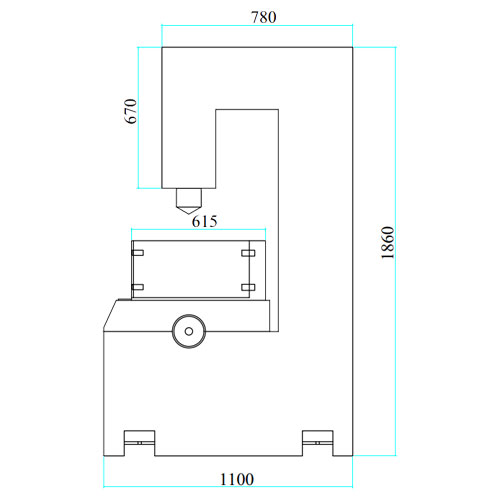

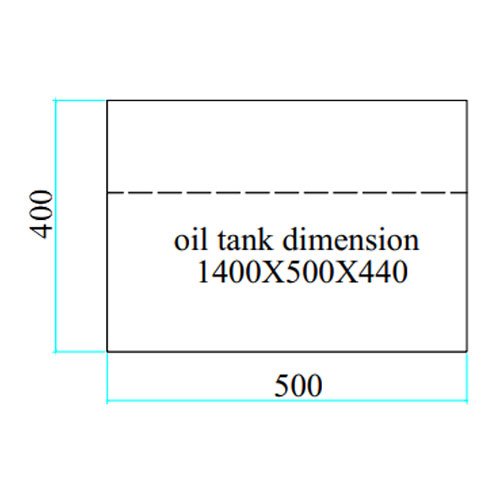

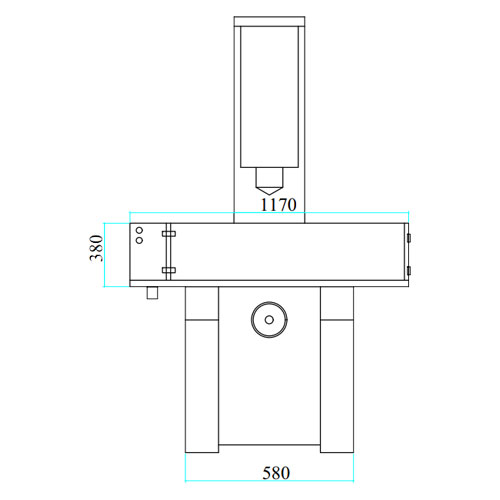

Outline Drawing


ZNC430 ZNC Electrical Discharge Machine Layout
ZNC430 ZNC Electrical Discharge Machine Layout
ZNC430 ZNC Electrical Discharge Machine Layout
ZNC430 ZNC Electrical Discharge Machine Layout
