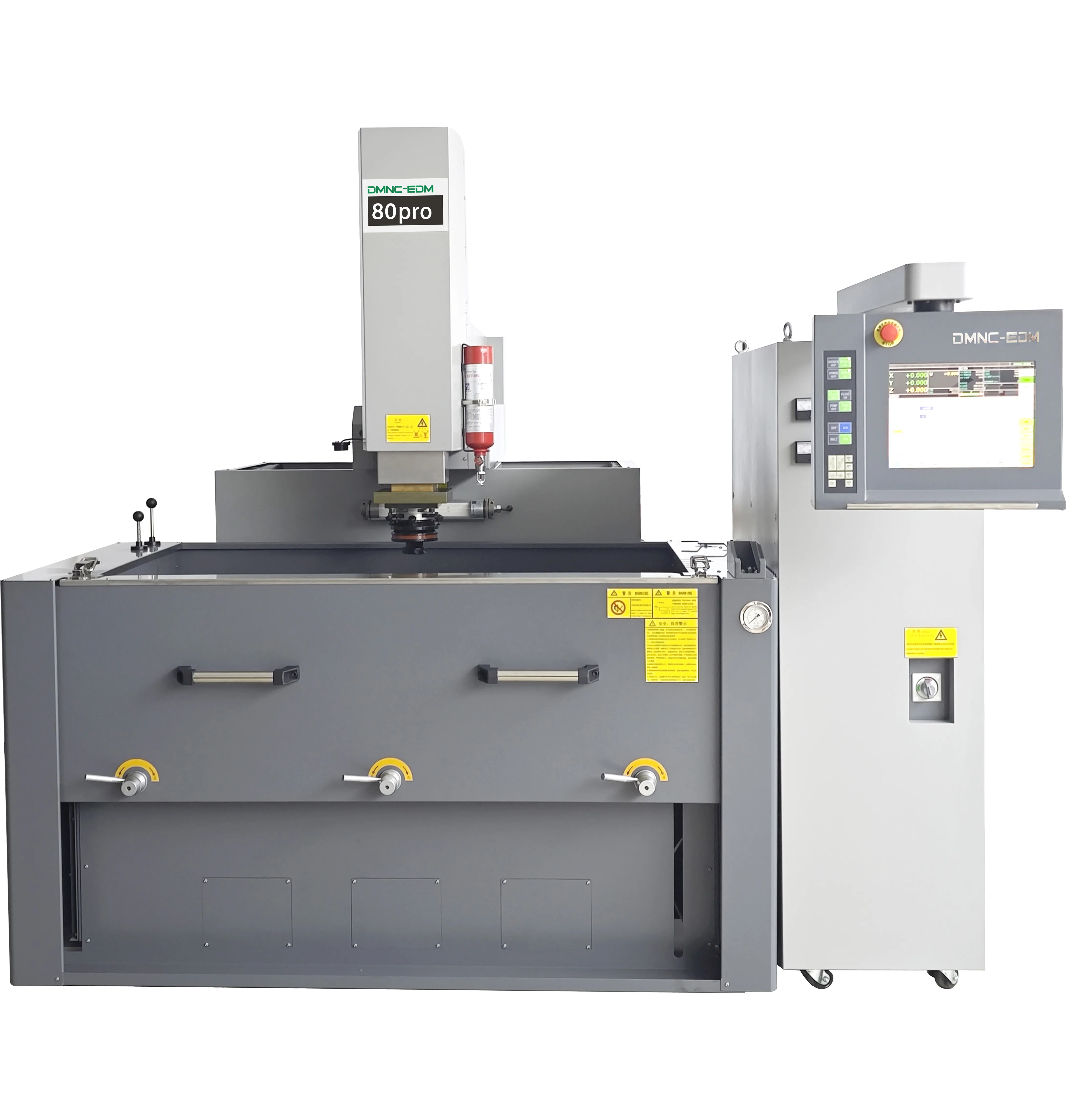

The 80pro is Dimeng large‑travel flagship CNC EDM. Built with heavy‑duty high‑rigidity cast‑iron bed, it adopts self‑developed discharge power supply for stable mirror‑surface machining and low electrode wear. Optional C‑axis and automatic electrode tool magazine support long‑time unmanned operation. Ideal for large automotive molds, heavy‑duty die‑casting molds and large‑size aerospace components.
Main Dimensions of A45 CNC Die Sinking EDM Machine
X×Y×Z travel: 800×500×400mm;
Working table dimension: 600×400mm;
Working tank on the table: 1090×630×445mm
A45 CNC Die Sinking EDM Machine Specifications
No. | Name | A45 |
1 | Working table dimension(L×W) | 600×400mm |
2 | X, Y, Z axis travel | 452×300×272mm |
3 | Working tank dimension(L×W×H） | 1090×630×445mm |
4 | Highest level of working liquid | 290mm |
5 | End of the spindle to the working table | 600mm |
6 | Capacity of the oil tank | 600L |
7 | Max weight of the electrode | 25kg |
8 | Max weight of the workpiece | 400kg |
9 | Positioning accuracy | 6µm |
10 | Repeat positioning accuracy | 3.5µm |
11 | Weight of machine | 3100kg |
12 | Dimension of machine | 1500×1680×2350mm |
13 | General input | 9kVA(50A) |
14 | Input power | 3 Phase 220/60Hz |
15 | CNC power generator | A3-50 |
16 | Max working current | 50A |
17 | Best surface finish | Ra≤0.08µm |
18 | Min. wear of the electrode | ≤0.05% |
19 | Max machining efficiency | ≥500mm3/min |
20 | Interpolation methods | Straight line, arc, helix |
21 | Accuracy compensation options | Step pitch compensation of each axis, gap compensation |
22 | Min. drive unit | 1µm |
23 | The outer dimension of the controller | 1250×550×1800mm |
24 | Display | 15-inch touch screen |
25 | Remote control | different gradesMFR0-3 |
Outline Drawing
