KD500L Column Moves EDM Wire Cutting Machine X×Y=400×500mm

KD500L Column Moves EDM Wire Cutting Machine X×Y=400×500mm


High precision CNC wire cut EDM machine KD500L has a unique mechanical design and lasted PLC-controlled system. The working table of KD500L is fixed, which is different to regular wire cutting EDM machines in the market, X and Y axes are moving at the column side, i.e. column moves, the structure has a better dynamic performance. Latest KCUT wire cut EDM control system with PLC control. X, Y, U, V, Z, and wire drum are all controlled by an AC servo motor. Linear motor for X and Y axis is available as optional. Intelligent servo control wire tension system to keep proper tension of the wire to get better cutting performance.


Main Dimensions of KD500L Column Moves EDM Wire Cutting Machine

X×Y×Z travel: 400×500×280mm;

Working table dimension: 520×800mm;

Weight of the machine: 300kg

Load of the table: 600kg

Wire drum type: fixed


KD500L Column moves EDM Wire Cutting Machine Specifications


Name

KD500L

X×Y×Z travel

400×500×280mm

Working table dimension

520×800mm

Max cut angle/thickness

±12°/80mm

Max load of the working table

600kg

Surface finish

Ra≤0.8-2.5μm(multiple and single paths cutting)

Max cutting speed

≥260mm2/min

Cut accuracy

≤±0.005mm, straight cutting

≤±0.015mm, angle cutting

Min drive unit

0.001mm

The diameter of the electrode wire

Φ0.10-Φ0.25mm

Weight of machine

3000kg

Dimension of machine

1700×2000×2100mm

Max cutting current

≥7A

Power supply

3 phase 380V/50Hz

High-frequency width (continuously adjustable)

1-99μs

Rated power

≤3KVA

Working tank

Capacity of tank

60L

Filtration

Changeable filter(0.005mm)

Dimension of tank

670×460×610mm

Weight of tank

60kg

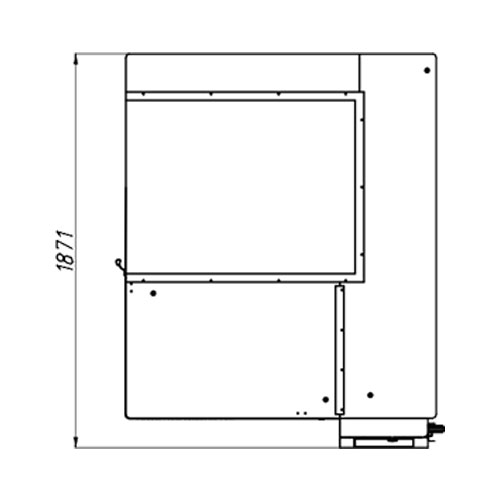

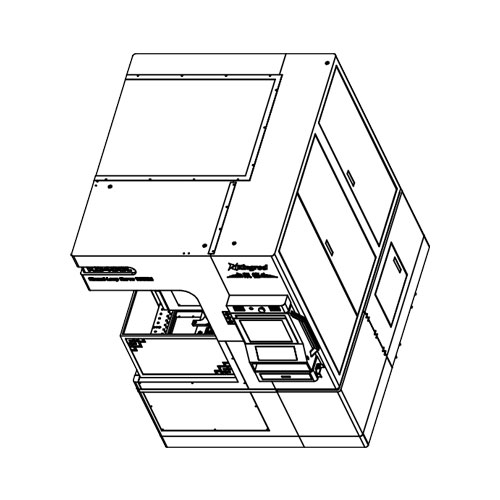

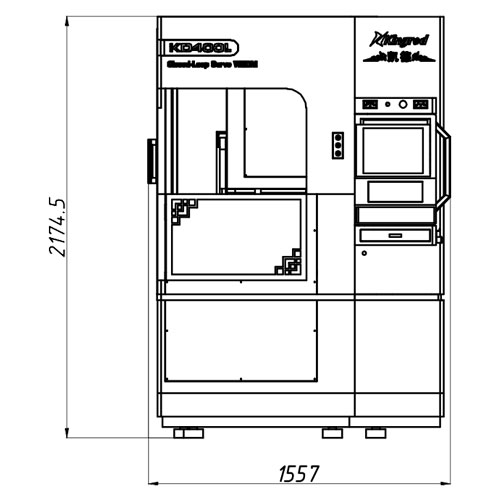

Outline Drawing


KD500L Column moves EDM Wire Cutting Machine X×Y=400×500mm Layout
KD500L Column moves EDM Wire Cutting Machine X×Y=400×500mm Layout
KD500L Column moves EDM Wire Cutting Machine X×Y=400×500mm Layout
KD500L Column moves EDM Wire Cutting Machine X×Y=400×500mm Layout
