Features of High-speed HF Power
1. No resistors used, low power consumption, save power 70%, saving using cost and environment friendly. Single-phase power supply, no need limit of lack of 3 phases power supply, less than 1Kw power consumption.
2. No resistors used, less heat inside of the controller, low malfunction ratio of electric components inside of cabinet of wire cut EDM.
3. Max. cutting current up to 15A, Max. speed up to around 350mm2/min(note: without thinking about surface finish).Regular stable continuous cutting current 6~8A, with cutting speed around 170mm2/min(up to the different requirement of surface finish).
4. With regular cutting speed, wear of molybdenum wire is about 0.01mm after 500,000mm2 cutting, i.e. after installation of new wire of Φ0.18mm, the diameter will be Φ17mm after the job of cutting 500,000mm2.
5. PC/104 motherboard special for industrial purpose, highly integrated and stable for industrial environment.
6. Interior double-impulse and multiple-circuit design, electrolytic protection during cutting.
7.Better surface finish, with high-speed sampling and high-speed logical circuit, the power of discharging is precisely controlled to improve the cut surface finish.
8. No limitation of cutting height, from 1mm to 1500mm, the working solution will not get too dirty when the workpiece is too high, to cause no discharging when cutting the high workpiece.
9. Blue spark, interior high-speed signal filtering function, isolate and adjust to avoid electric arcing during cutting.
10. Protection of wire burning, high-speed cutting protection.

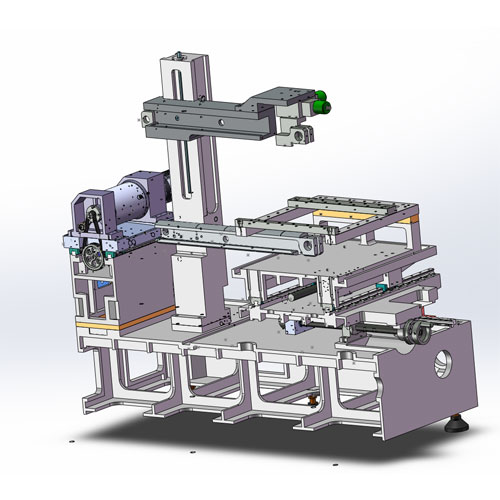

DK7780 CNC EDM Wire Cutting Machine Specifications
Max cut thickness
Working table dimension
Max cut angle/thickness
Max load of the working table
Max cutting speed
≤0.012mm, straight cutting
The diameter of the electrode wire
Weight of machine
Dimension of machine
Max cutting current
Capacity of tank
Dimension of tank
Weight of tank
