A540 Ram CNC EDM Machine With Optimized High Performance Power

A540 Ram CNC EDM Machine With Optimized High Performance Power


A540 CNC spark erosion machine has three-axis simultaneous control and 5th generation electrical discharging control system, best surface finish Ra≤0.2μm, Min. electrode wear ≤0.1%, standard equipped with 50A controller and Max machining efficiency ≥500mm3/min. It is ram-type CNC EDM machine, the working table of A540 is fixed, so it can load heavy molds without affecting the motion of X and Y axis while moving.


Main Dimensions of A540 Ram CNC EDM Machine

X×Y×Z travel: 500×400×300mm;

Working table dimension: 800×500mm;

Working tank on the table: 1340×850×500mm



A540 Ram CNC EDM Machine Specifications


No.

Name

A540

1

Working table dimension(L×W)

800×500mm

2

X, Y, Z axis travel

500×400×300mm

3

Working tank dimension(L×W×H)

1400×900×500mm

4

Highest level of working liquid

360mm

5

End of the spindle to the working table

400~700mm

6

Capacity of the oil tank

940L

7

Max weight of the electrode

80kg

8

Max weight of the workpiece

1500kg

9

Weight of machine

3300kg

10

Dimension of machine

2525×2755×2526mm

11

General input

9kVA(50A)

12

Input power

3 Phase 380/50Hz

13

CNC power generator

A3-50

14

Max working current

50A

15

Best surface finish

Ra≤0.2µm

16

Min. wear of the electrode

≤0.05%

17

Max machining efficiency

≥500mm3/min

18

Interpolation methods

Straight line, arc, helix

19

Accuracy compensation options

Step pitch compensation of each axis,

gap compensation

20

Min. drive unit

1µm

21

The outer dimension of the controller

1250×550×1800mm

22

Display

15-inch touch screen

23

Remote control

different gradesMFR0-3

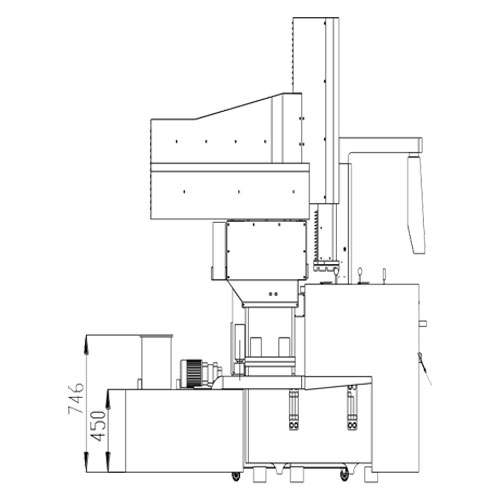

Outline Drawing


A540 Ram CNC EDM Machine With Optimized High Performance Power Layout 1
A540 Ram CNC EDM Machine With Optimized High Performance Power Layout 1
A540 Ram CNC EDM Machine With Optimized High Performance Power Layout 1
