A2510 Double Heads Die Sinking EDM Machine

A2510 Double Heads Die Sinking EDM Machine


A2510 twin heads CNC spark erosion machine has two separated controllers and two separated machine heads, three axis simultaneous control of each head and DMNC 5th generation electrical discharging machining control system, best surface finish Ra≤0.2μm, Min. electrode wear ≤0.1%, standard equipped with 50A controller and Max machining efficiency ≥500mm3/min. It is ram type CNC EDM machine, the working table of A2510 is fixed, so it can load heavy molds without affecting the motion of X and Y axis while moving. Two separated heads can do separated machining at the same time.


Main Dimensions of A2510 Double Heads Die Sinking EDM Machine

X×Y×Z travel: 1800×1000×600mm(double heads);

Working table dimension: 2800×1300mm;

Working tank on the table: 3800×1800×800mm


A2510 Double Heads Die Sinking EDM Machine Specifications


No.

Name

A2510

1

Working table dimension(L×W)

2800×1300mm

2

X×Y× Z axis travel

Double heads 1800×1000×600mm(each)

3

Working tank dimension(L×W×H)

3500×1800×800mm

4

Highest level of working liquid

550mm

5

End of the spindle to the working table

750-1350mm

6

Capacity of the oil tank

4900L

7

Max weight of the electrode

400kg

8

Max weight of the workpiece

9000kg

9

Weight of machine

18400kg

10

Dimension of machine

5700×5450×3874mm

11

General input

9kVA(50A) ×2

12

Input power

3 Phase 380/50Hz

13

CNC power generator

A3-50

14

Max working current

50A×2

15

Best surface finish

Ra≤0.2µm

16

Min. wear of the electrode

≤0.05%

17

Max machining efficiency

≥500mm3/min

18

Interpolation methods

Straight line, arc, helix

19

Accuracy compensation options

Step pitch compensation of each axis,

gap compensation

20

Min. drive unit

1µm

21

The outer dimension of the controller

1250×550×1800mm

22

Display

15-inch touch screen

23

Remote control

different grades MFR0-3

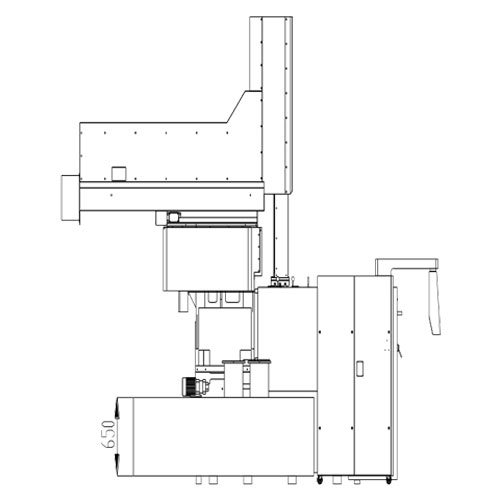

Outline Drawing

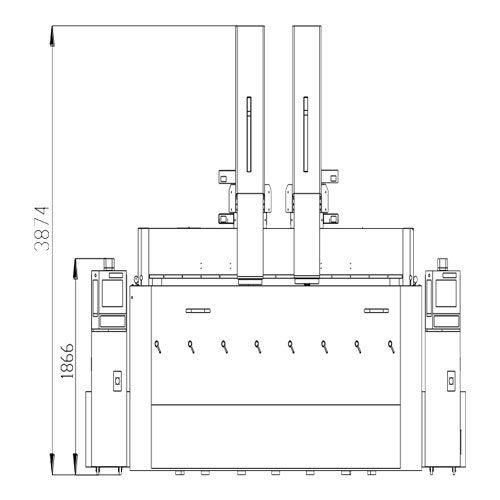

A2510 Double Heads Die Sinking EDM Machine Layout

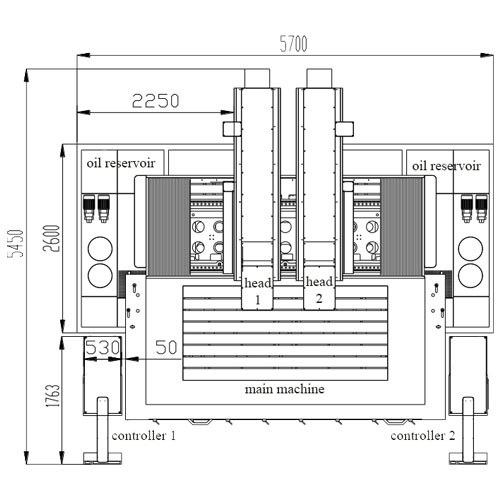

A2510 Double Heads Die Sinking EDM Machine Layout
