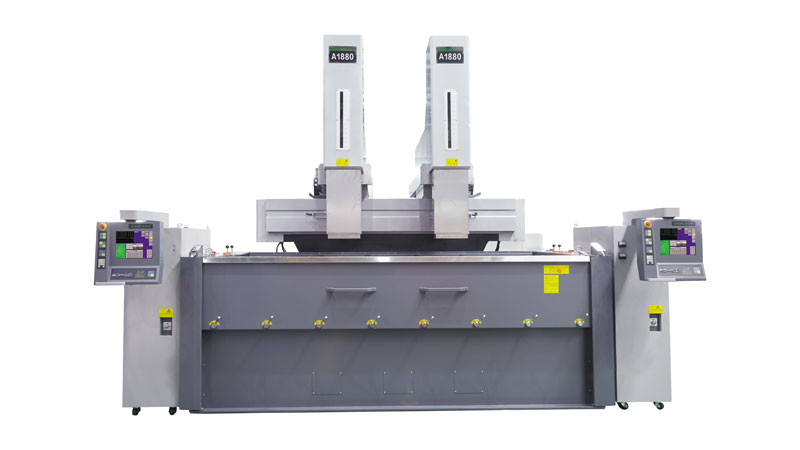

A1880 Double Heads CNC RAM EDM Machine

A1880 Double Heads CNC RAM EDM Machine


A1880 twin heads CNC spark erosion machine has two separated controllers and two separated machine heads, three axis simultaneous control of each head and DMNC 5th generation electrical discharging machining control system, best surface finish Ra≤0.2μm, Min. electrode wear ≤0.1%, standard equipped with 50A controller and Max machining efficiency ≥500mm3/min. It is ram type CNC EDM machine, the working table of A1880 is fixed, so it can load heavy molds without affecting the motion of X and Y axis while moving. Two separated heads on A1880 RAM EDM machine can do separated machining at the same time.


Main Dimensions of A1880 Double Heads CNC RAM EDM Machine

X×Y×Z travel: 1950×800×600mm(single head);

1200×800×600mm(double heads);

Working table dimension: 2000×1000mm;

Working tank on the table: 3500×1800×650mm


A1880 Double Heads CNC RAM EDM Machine Specifications


No.

Name

A1880

1

Working table dimension(L×W)

2000×1000mm

2

X×Y× Z axis travel

Double heads 1200×800×600mm(each)

Single head 1950×800×600mm

3

Working tank dimension(L×W×H)

3500×1800×650mm

4

Highest level of working liquid

420mm

5

End of the spindle to the working table

750-1350mm

6

Capacity of the oil tank

4900L

7

Max weight of the electrode

300kg

8

Max weight of the workpiece

5000kg

9

Weight of machine

13400kg

10

Dimension of machine

5204×5109×3861mm

11

General input

9kVA(50A) ×2

12

Input power

3 Phase 380/50Hz

13

CNC power generator

A3-50

14

Max working current

50A×2

15

Best surface finish

Ra≤0.2µm

16

Min. wear of the electrode

≤0.05%

17

Max machining efficiency

≥500mm3/min

18

Interpolation methods

Straight line, arc, helix

19

Accuracy compensation options

Step pitch compensation of each axis,

gap compensation

20

Min. drive unit

1µm

21

The outer dimension of the controller

1250×550×1800mm

22

Display

15-inch touch screen

23

Remote control

different grades MFR0-3

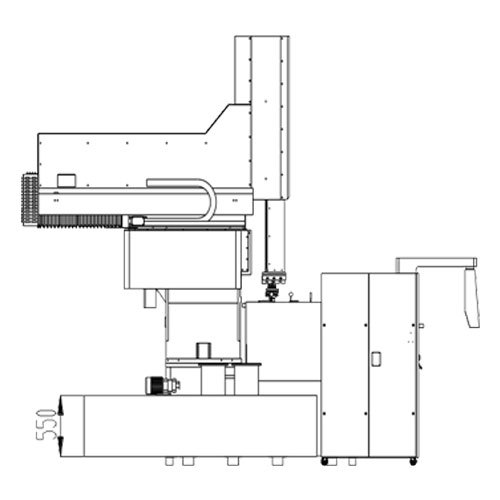

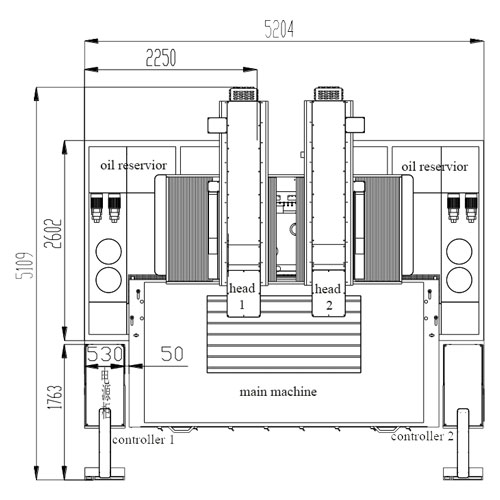

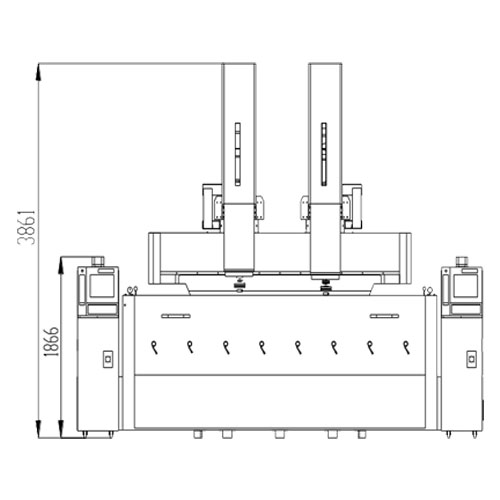

Outline Drawing


A1880 Double Heads CNC RAM EDM Machine Layout
A1880 Double Heads CNC RAM EDM Machine Layout
A1880 Double Heads CNC RAM EDM Machine Layout
