KD1000W CNC EDM Wire Cut Machine X×Y=800×1000mm

KD1000W CNC EDM Wire Cut Machine X×Y=800×1000mm


CNC wire cut EDM machine KD800WL is designed for large jobs cutting. It has Kingred's own designed separated machine bed for heavy-duty loading, and the lasted developed PLC controlled system running at the latest Windows platform. +-30° big angle cutting system with pitch compensation to realize high accuracy big angle cutting.  Roller linear guideway for heavy load with good accuracy. Y axis could be customized made in the range of 1000-2600mm.


Main Dimensions of KD1000W CNC EDM Wire Cut Machine

X×Y×Z travel: 630×800×500mm;

Working table dimension: 780×1010mm;

Max cut taper: ±30°/80mm or ±6°/80mm;

Weight of the machine: 6000kg;

Load of the table: 1000kg;

Wire drum type: moving.


KD1000W CNC EDM Wire Cut Machine Specifications


Name

KD1000W

X×Y×Z

800×1000×500mm

Working table dimension

820×1400mm

Max cut angle/thickness

±6°/80mm or ±30°/80mm

Max load of the working table

1200kg

Surface finish

Ra≤1.0-2.5μm(multiple and single paths cutting)

Max cutting speed

≥260mm2/min

Cut accuracy

≤±0.006mm, straight cutting

≤±0.015mm, angle cutting

Min drive unit

0.001mm

The diameter of the electrode wire

Φ0.12-Φ0.20mm

Weight of machine

6800kg

Dimension of machine

2800×2100×2400mm

Max cutting current

≥7A

Power supply

3 phase 380V/50Hz

High-frequency width (continuously adjustable)

1-99μs

Rated power

≤3KVA

Working tank

Capacity of tank

60L

Filtration

Changeable filter(0.005mm)

Dimension of tank

670×460×610mm

Weight of tank

60kg


Outline Drawing

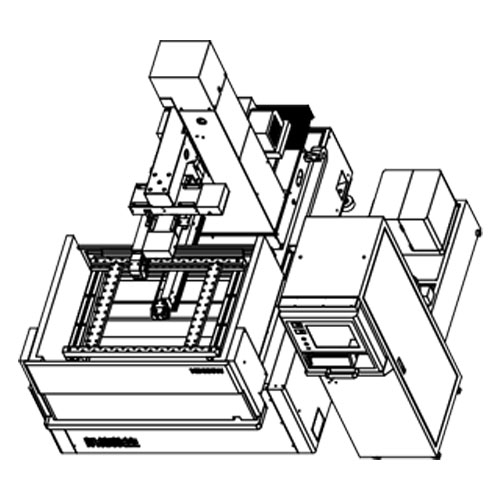

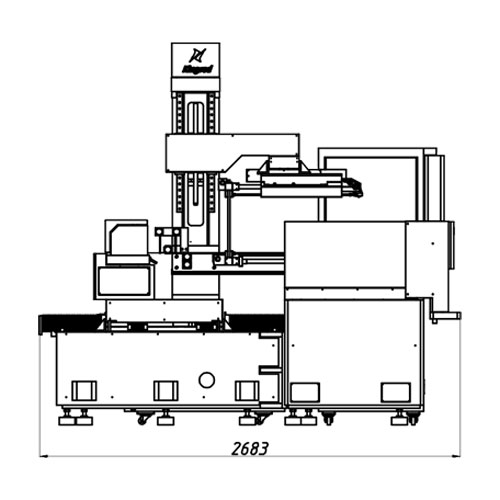

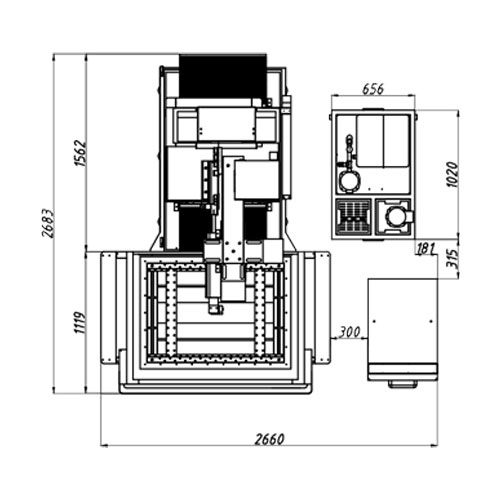

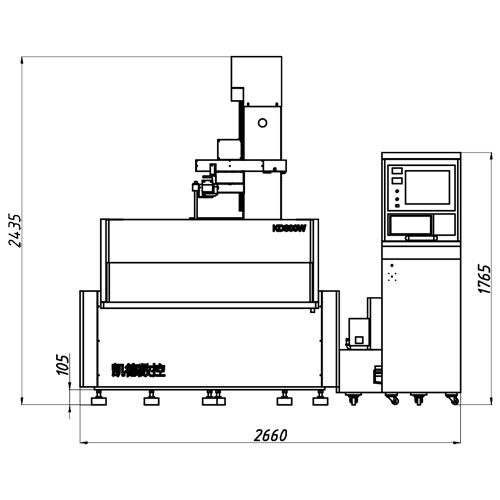

KD1000W CNC EDM Wire Cut Machine X×Y=800×1000mm Layout
KD1000W CNC EDM Wire Cut Machine X×Y=800×1000mm Layout
KD1000W CNC EDM Wire Cut Machine X×Y=800×1000mm Layout
KD1000W CNC EDM Wire Cut Machine X×Y=800×1000mm Layout
