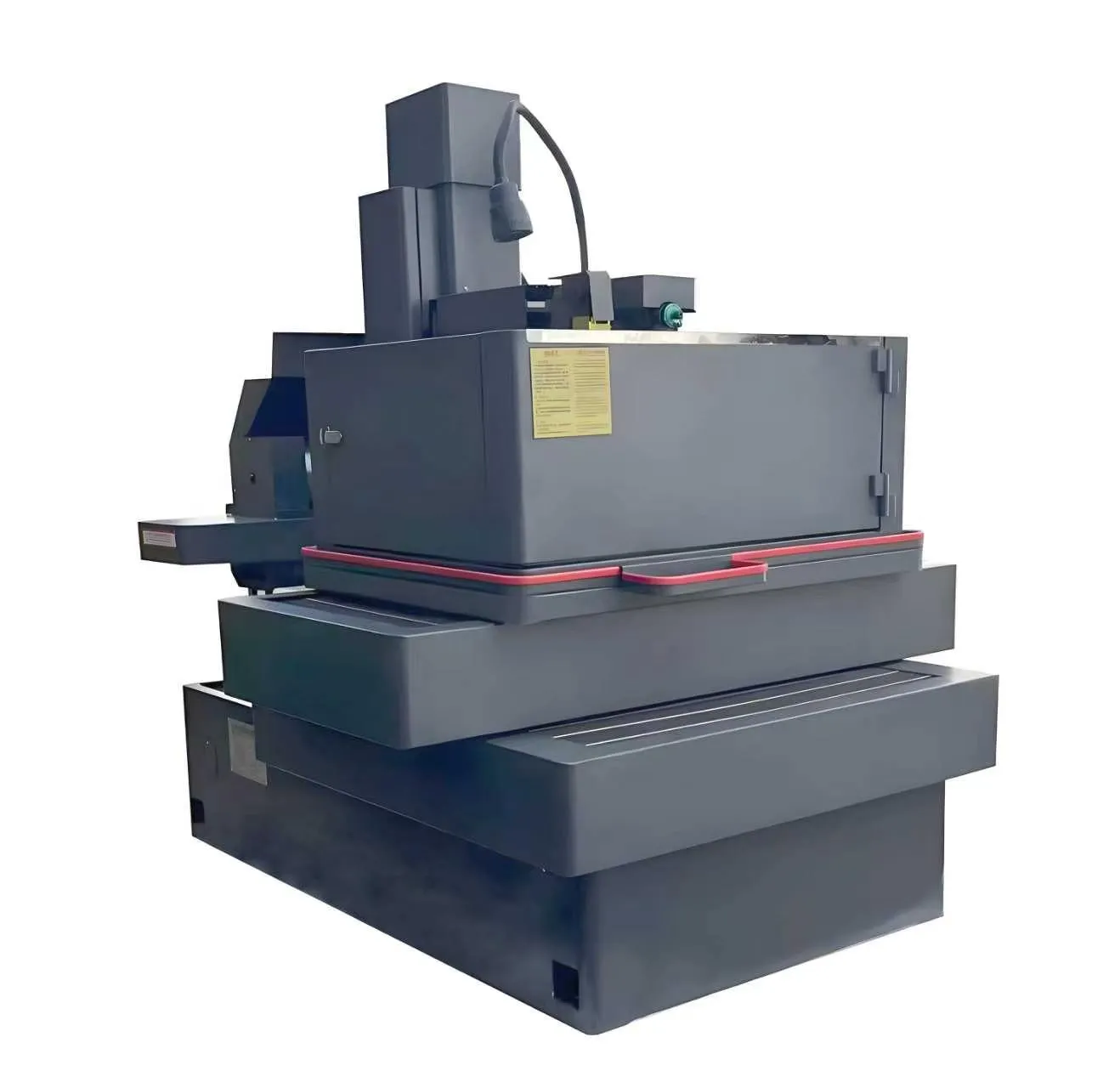

DK7732 CNC EDM Wire Cutting Machine With X×Y=320×400mm

DK7732 CNC EDM Wire Cutting Machine With X×Y=320×400mm


Features of High-speed HF Power

1. No resistors used, low power consumption, save power 70%, saving using cost and environment friendly. Single-phase power supply, no need limit of lack of 3 phases power supply, less than 1Kw power consumption.

2. No resistors are used, which generates less heat inside the controller. This leads to a lower malfunction rate of the electrical components within the cabinet of the CNC EDM wire cut machine.

3. Max. cutting current up to 15A, Max. speed up to around 350mm2/min(note: without thinking about surface finish).Regular stable continuous cutting current 6~8A, with cutting speed around 170mm2/min(up to the different requirement of surface finish).

4. With regular cutting speed, wear of molybdenum wire is about 0.01mm after 500,000mm2 cutting, i.e. after installation of new wire of Φ0.18mm, the diameter will be Φ17mm after the job of cutting 500,000mm2.

5. PC/104 motherboard special for industrial purpose, highly integrated and stable for industrial environment.

6. Interior double-impulse and multiple-circuit design, electrolytic protection during cutting.

7.Better surface finish, with high-speed sampling and high-speed logical circuit, the power of discharging is precisely controlled to improve the cut surface finish.

8. No limitation of cutting height, from 1mm to 1500mm, the working solution will not get too dirty when the workpiece is too high, to cause no discharging when cutting the high workpiece.

9. Blue spark, interior high-speed signal filtering function, isolate and adjust to avoid electric arcing during cutting.

10.  Protection of wire burning, high-speed cutting protection.


DK7732 CNC EDM Wire Cutting Machine Specifications


Name

DK7732

X×Y travel

350×450mm

Max cut thickness

400mm

Working table dimension

530×780mm

Max cut angle/thickness

±6°/80mm

Max load of the working table

400kg

Surface finish

Ra≤2.3μm(one cut)

Ra≤1.6μm(two cuts)

Ra≤1.2μm(three cuts)

Max cutting speed

≥300mm2/min

Cut accuracy

≤0.012mm, straight cutting

The diameter of the electrode wire

Φ0.12-Φ0.20mm

Weight of machine

1200kg

Dimension of machine

1640×1250×1920mm

Max cutting current

≥10A

Power supply

Single-phase

Rated power

≤1KVA

Working tank

Capacity of tank

60L

Filtration

Changeable filter(0.005mm)

Dimension of tank

670×460×610mm

Weight of tank

60kg

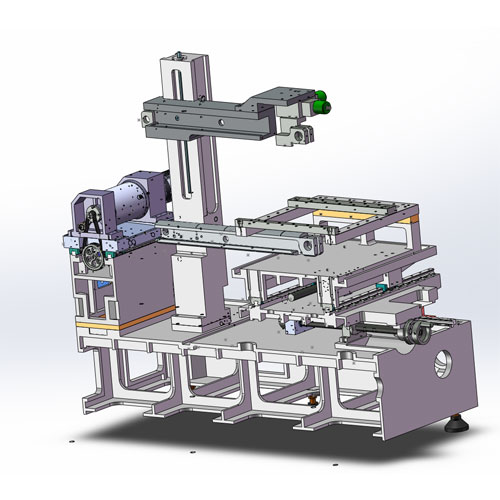

Outline Drawing


DK7732 CNC EDM Wire Cutting Machine With X×Y=320×400mm  Layout
