Automation CNC EDM Machine

CNC EDM combines with robot, CMM, electrode and workpiece store station, and CNC high speed milling center to realize fully automatic production. DMNC provides a complete solution, and that's the CNC EDM automatic spark erosion machine.

Automation CNC EDM Machine Highlights


  • Robot and electrode/workpiece station available to realize automation application in electric discharge machining.

  • Latest 6th generation Windows7/Windows 10 platform control system

  • Abundant interfaces for communication

  • Automatic Up-and-down lifting working tank door for automation.

  • Intelligent automatic EDM discharging machining.

  • New expert database equipped CNC die sinker.

  • Excellent performance of both cooper and graphite electrode machining.

  • Multiple pages editing at the same time, no need to stop machining.

  • Min machining current 0.1A.

  • Best surface finish Ra≤0.08µm

  • Positioning accuracy ≤5μm

  • Imported SP grade linear guideway

  • C2 grade ball screw

  • 3 years of aging treatment of casting of the machine.

  • High jump function, after serval times of regular jump discharging, Z axis move higher, and then goes with regular jump height again, it is help for deep groove and massive area machining.

  • Machining speed is about 30% faster than DOS platform discharging control system.

  • Auxiliary learning function


Automation CNC EDM Machine Function Configuration of Controller


No.

Function explanation

1

LCD, touch screen input

2

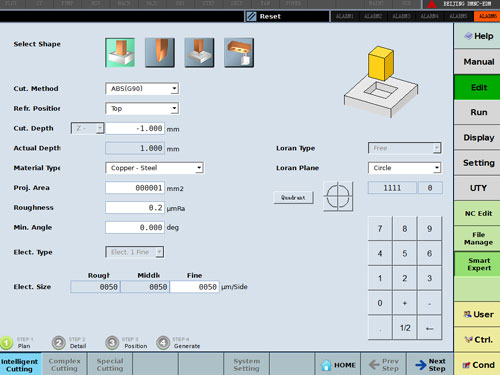

Windows intelligent expert platform CNC EDM control system, help for every page, quick and easy to learn and use

3

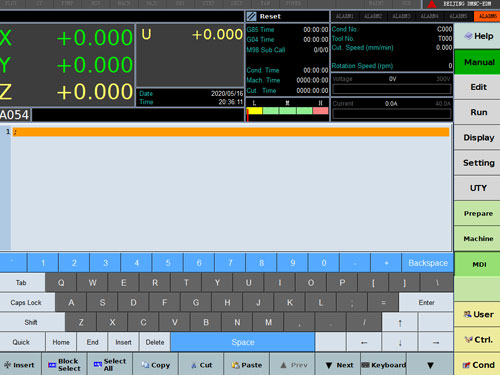

Multiple pages to be edit at the same time, automatically generate a machining program with multiple cavities.

4

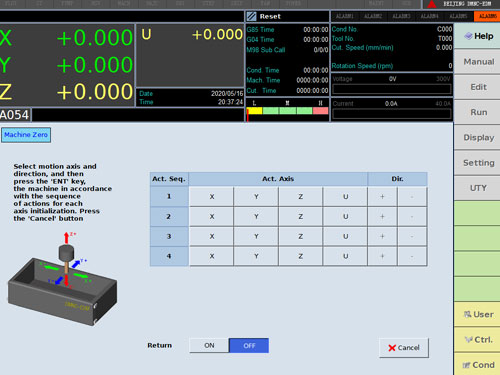

Can select any axis to start when do home after power off.

5

Coordinate position automatic memory CNC discharge machine.

6

React speed and machining efficiency are faster than the old system.

7

Standard with simultaneous three-axis control, Max six-axis simultaneous control

8

Super finish PIKA machining circuits-mirror surface machining function, Min machining current 0.1A

9

Expert machining parameters database: with high explosive power circuit, especially good for processing hard ally material)

Automatic and manual machining according to different combinations of a different material of electrode and workpiece: copper/steel, graphite 1/steel, graphite 2/steel, silver-tungsten/steel, copper-tungsten/steel, silver-tungsten/hard alloy, copper/zinc alloy, graphite/zinc alloy, copper/copper alloy.

10

AUTO machining function:

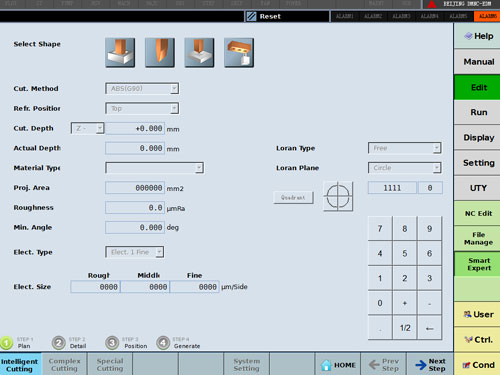

Input material of electrode and workpiece, machining area, shrinkage of the electrode, required surface finish and etc Then control system automatically calculates machining parameters from rough machining to finish machining according to the expert database.

11

Automatic positioning function:

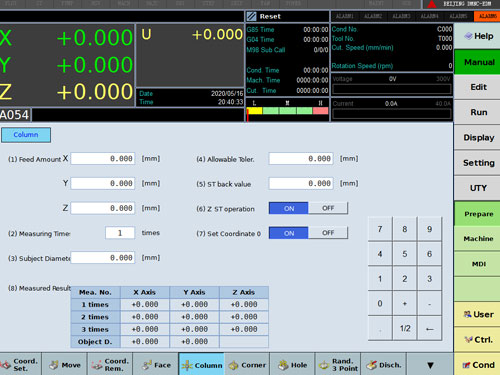

End face positioning, cylinder center positioning, corner positioning, inner hole positioning, random three points positioning, discharging position self-decided positioning and etc.

12

Online measuring function:

Utilize automatic positioning function to do the online measuring and amending to the machined workpiece.

13

Automatic arcing removing circuit:

Real-time monitoring on the discharging status, if any tiny short circuit or arcing happens, the system would remove arcing and give the alarm

14

Safety control function:

Overload protection, code grammar detecting, oil level control, oil temperature control, automatic fire extinguisher

15

Power-off recovery function:

The system can remember the present position of coordinate when suddenly power-off happens, the present position can be kept.


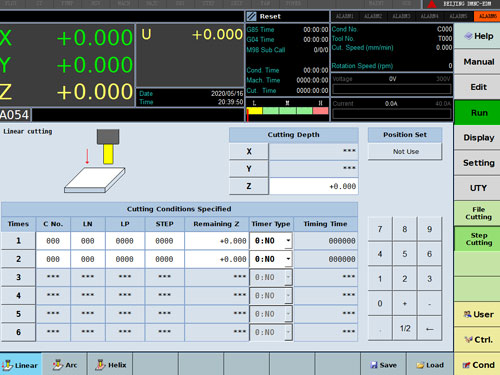

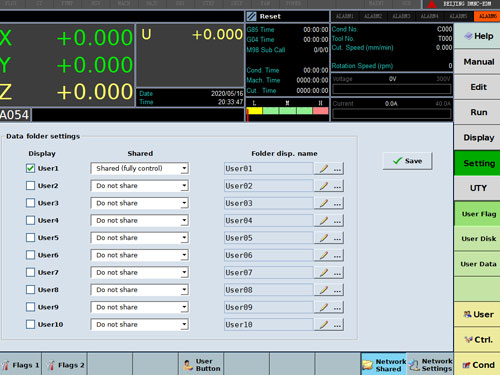

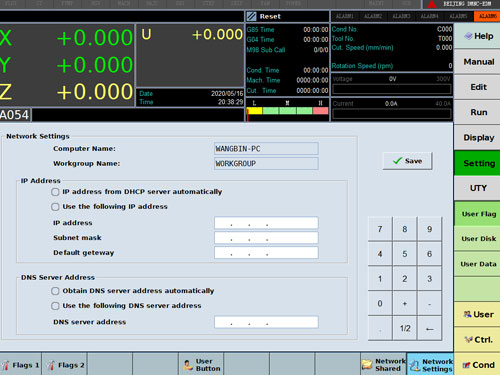

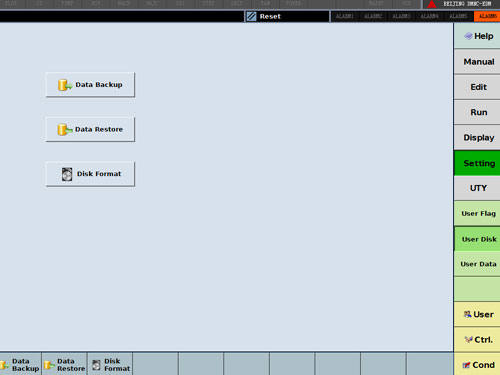

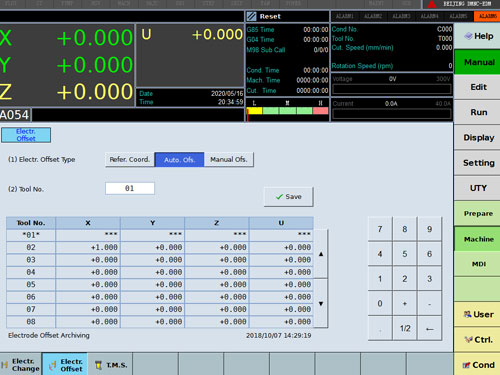

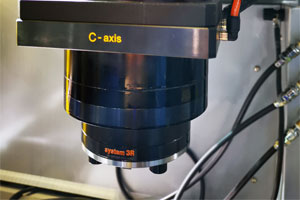

Function Pic Automation CNC EDM Machine
