A45 CNC spark erosion machine has three-axis simultaneous control and 5th generation electrical discharging control system, best surface finish Ra≤0.08μm, Min. electrode wear ≤0.05%, standard equipped with 50A controller and Max machining efficiency ≥500mm3/min. Excellent performance and suitable dimension make A45 ideal for making various molds with the strict requirements of surface finish and accuracy.


Main Dimensions of A45 CNC Die Sinking EDM Machine

X×Y×Z travel: 452×300×272mm;

Working table dimension: 600×400mm;

Working tank on the table: 1090×630×445mm


A45 CNC Die Sinking EDM Machine Specifications


No.

Name

A45

1

Working table dimension(L×W)

600×400mm

2

X, Y, Z axis travel

452×300×272mm

3

Working tank dimension(L×W×H)

1090×630×445mm

4

Highest level of working liquid

290mm

5

End of the spindle to the working table

600mm

6

Capacity of the oil tank

600L

7

Max weight of the electrode

25kg

8

Max weight of the workpiece

400kg

9

Positioning accuracy

6µm

10

Repeat positioning accuracy

3.5µm

11

Weight of machine

3100kg

12

Dimension of machine

1500×1680×2350mm

13

General input

9kVA(50A)

14

Input power

3 Phase 220/60Hz

15

CNC power generator

A3-50

16

Max working current

50A

17

Best surface finish

Ra≤0.08µm

18

Min. wear of the electrode

≤0.05%

19

Max machining efficiency

≥500mm3/min

20

Interpolation methods

Straight line, arc, helix

21

Accuracy compensation options

Step pitch compensation of each axis,

gap compensation

22

Min. drive unit

1µm

23

The outer dimension of the controller

1250×550×1800mm

24

Display

15-inch touch screen

25

Remote control

different gradesMFR0-3

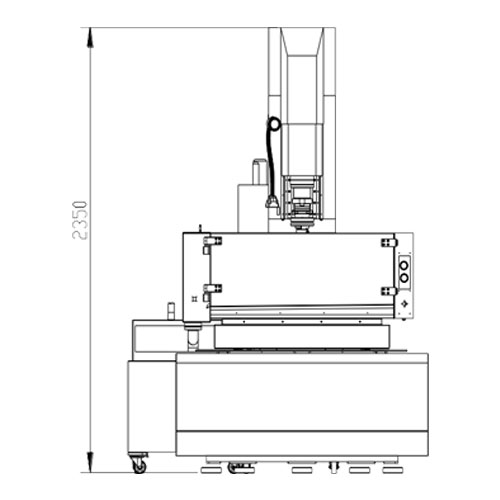

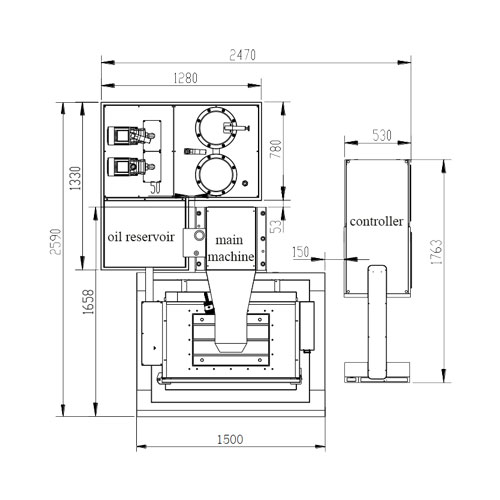

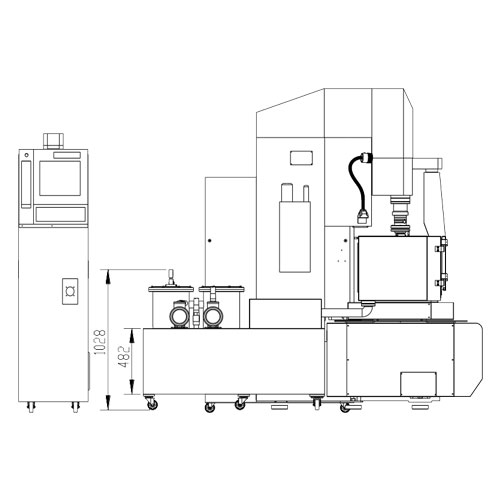

Outline Drawing
